WL4 Wall Sensor
Descrete remote temperature sensors with optional finishes
NTC & PT1000 options with plug and socket cable available in Plastic as well as all the Polar Bear finishes

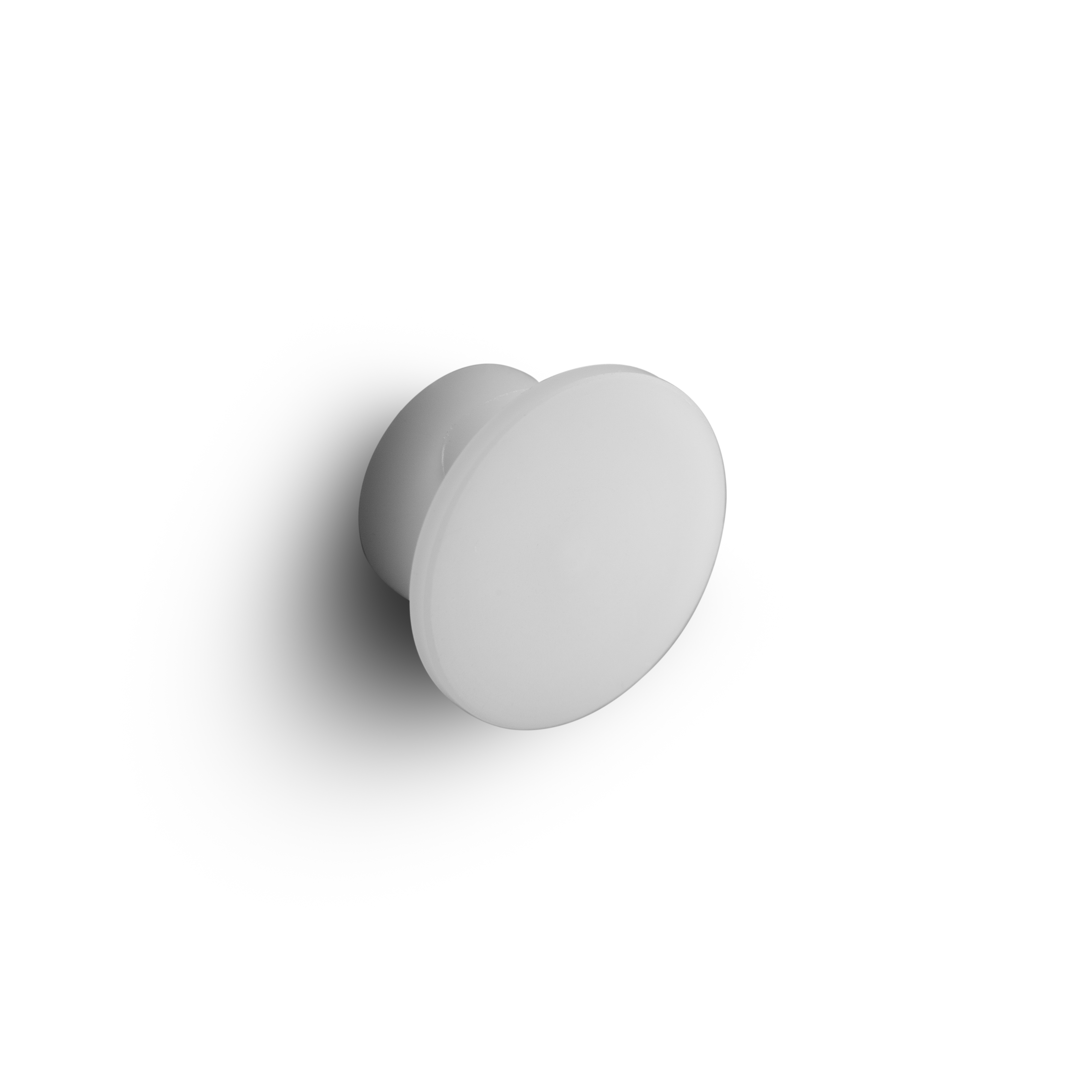

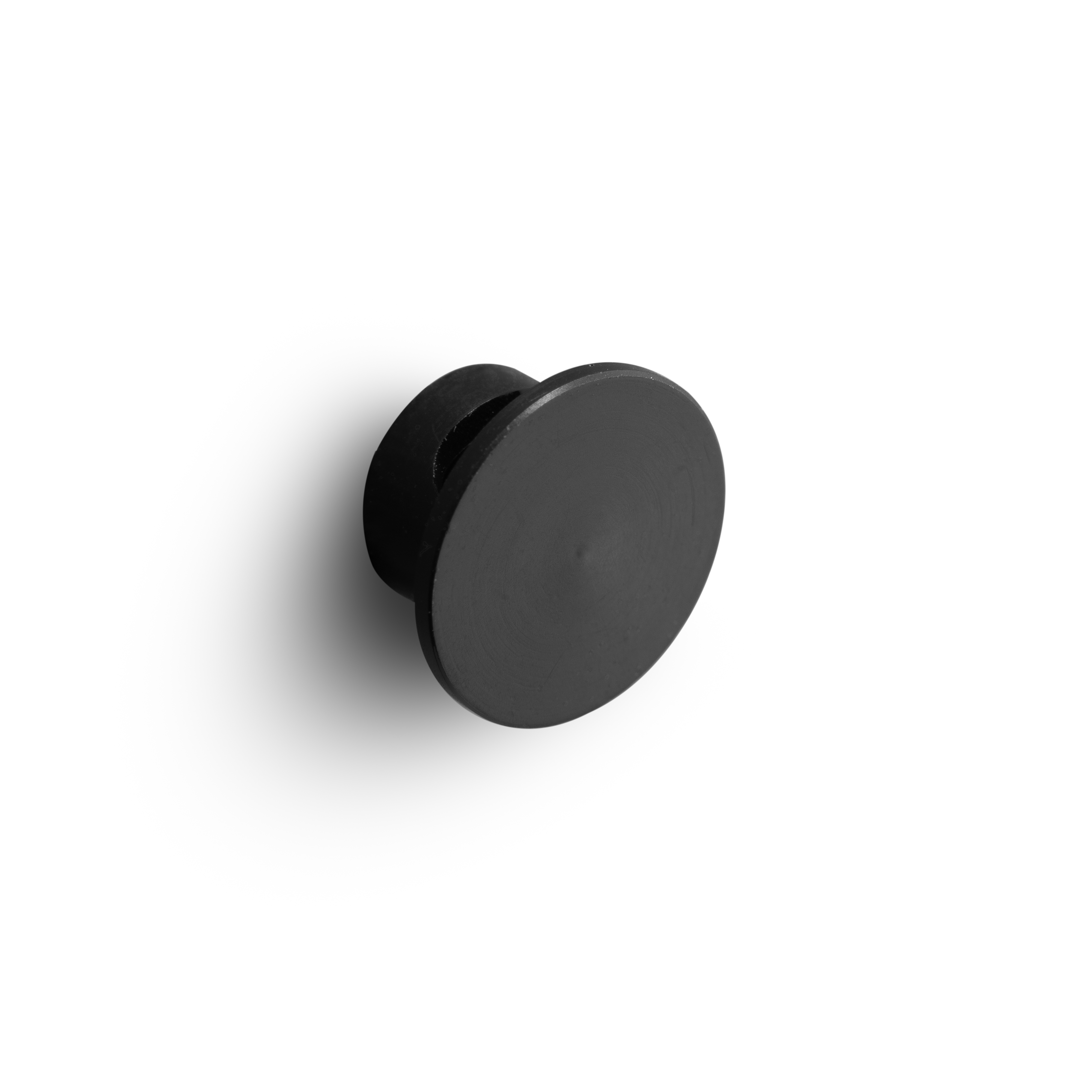

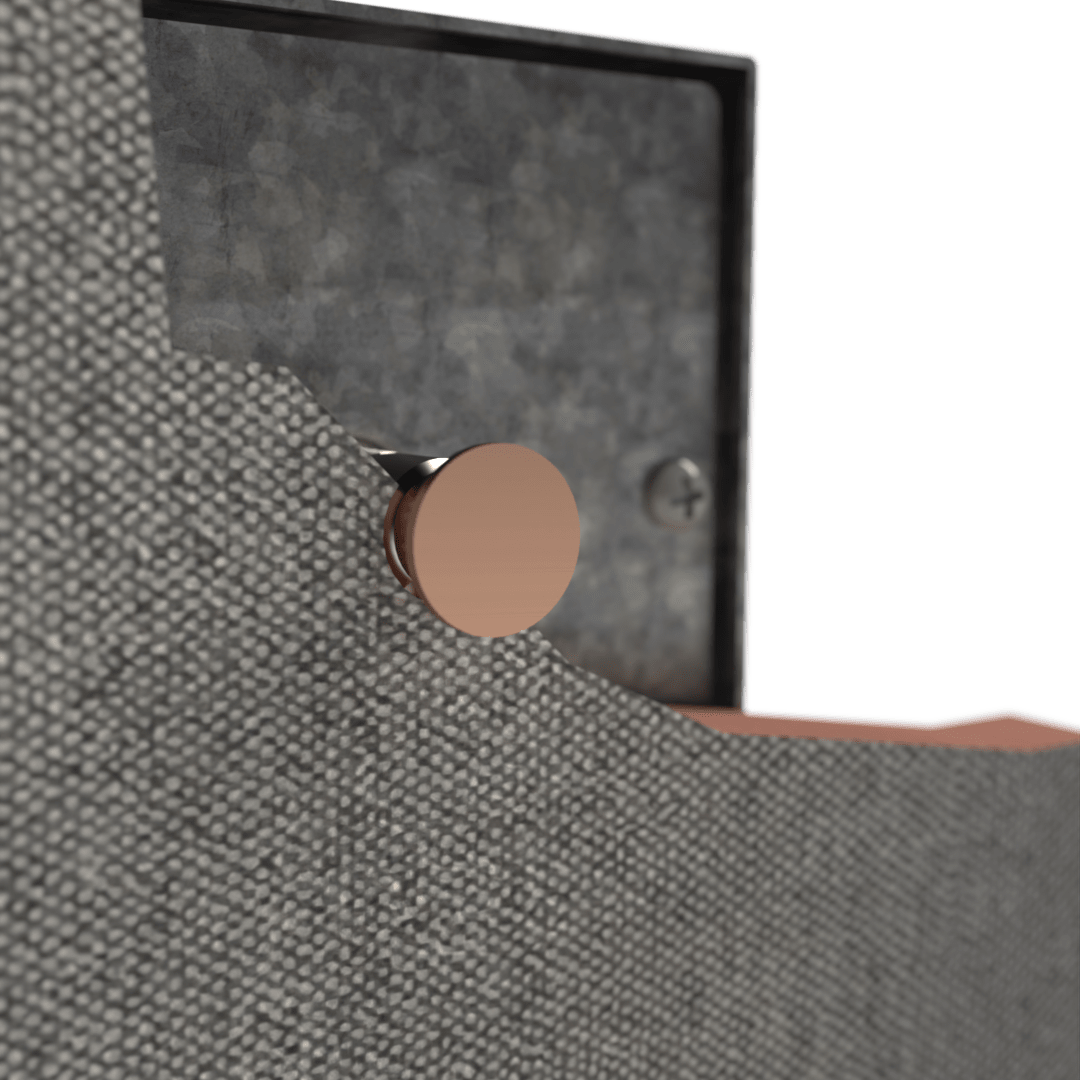

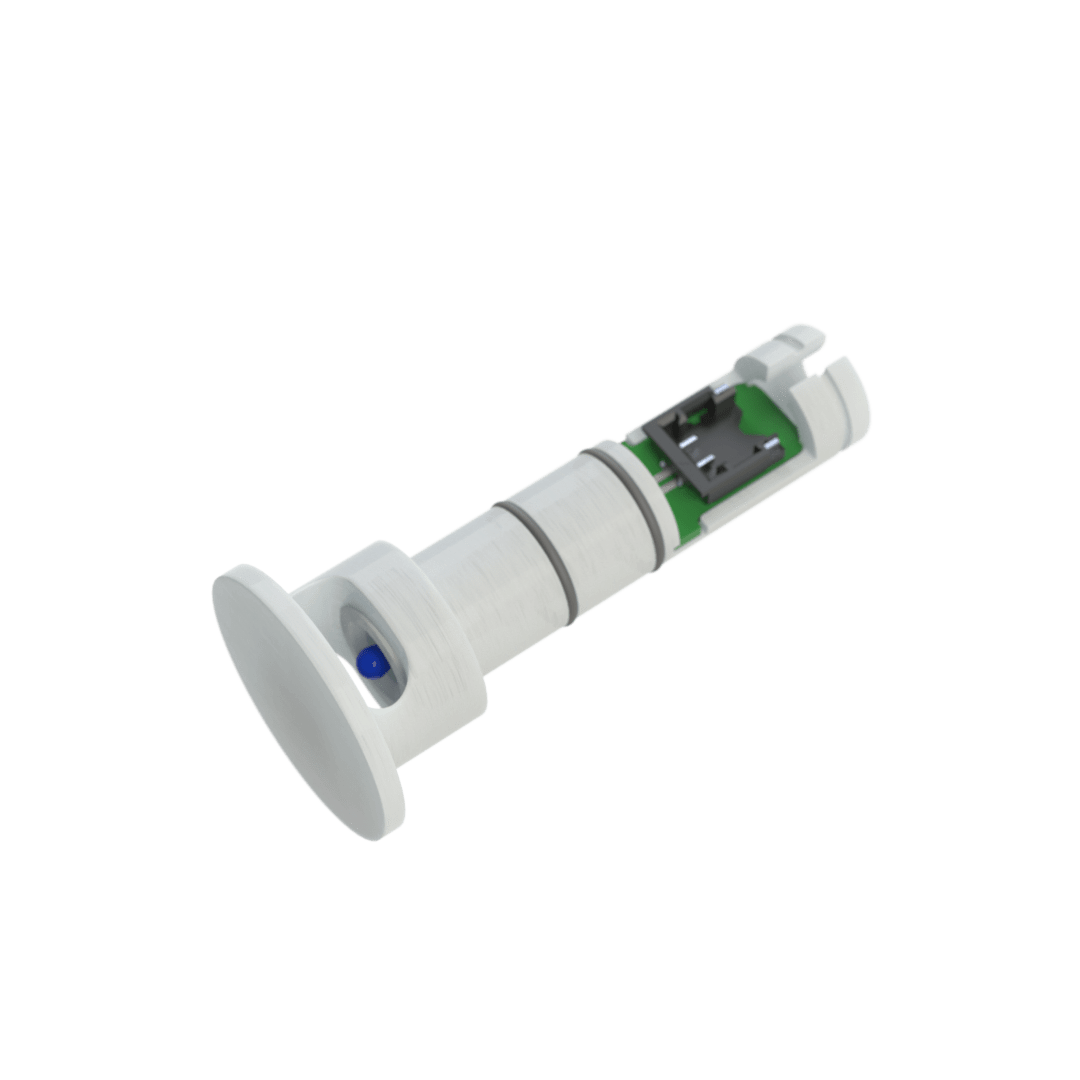

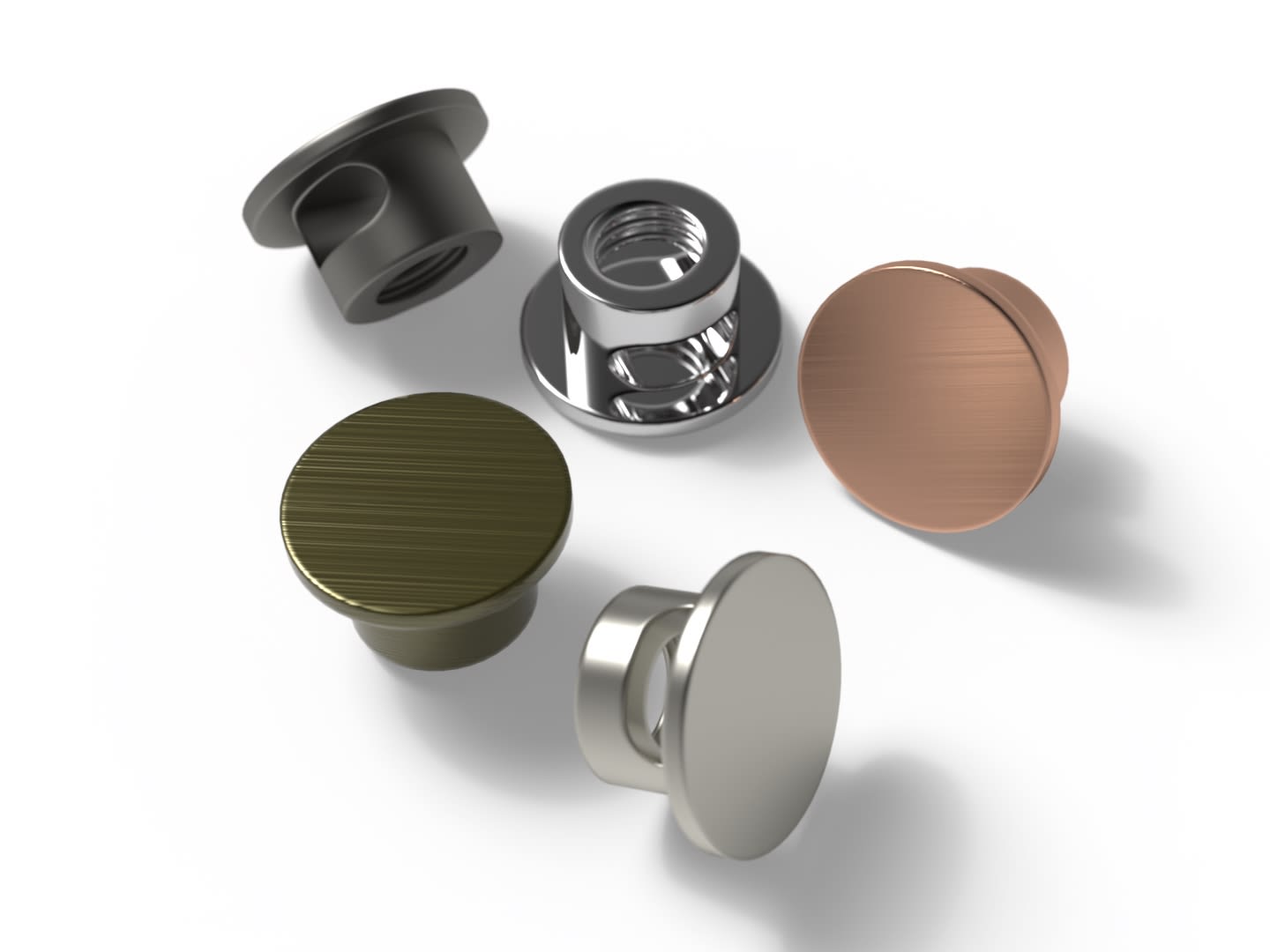

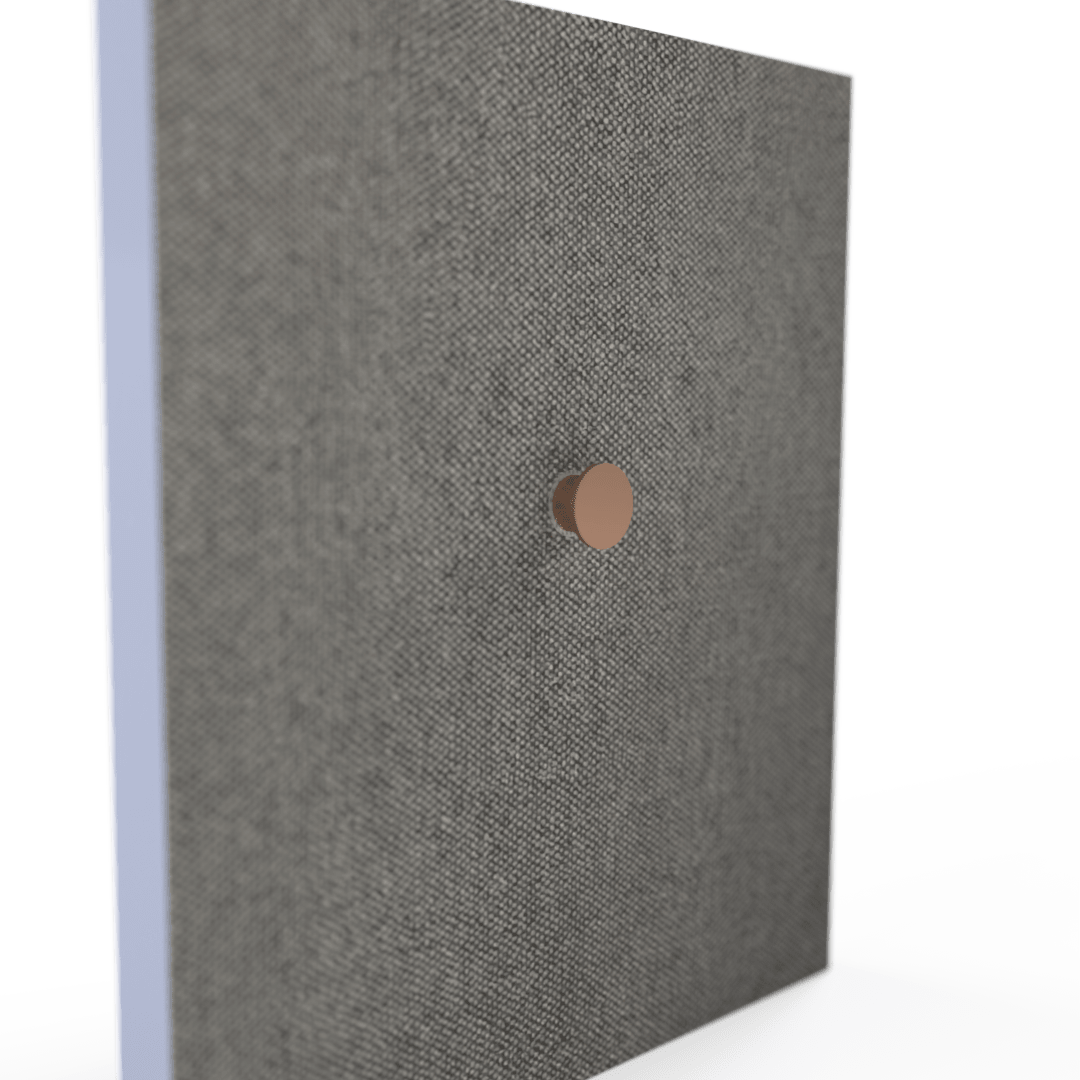

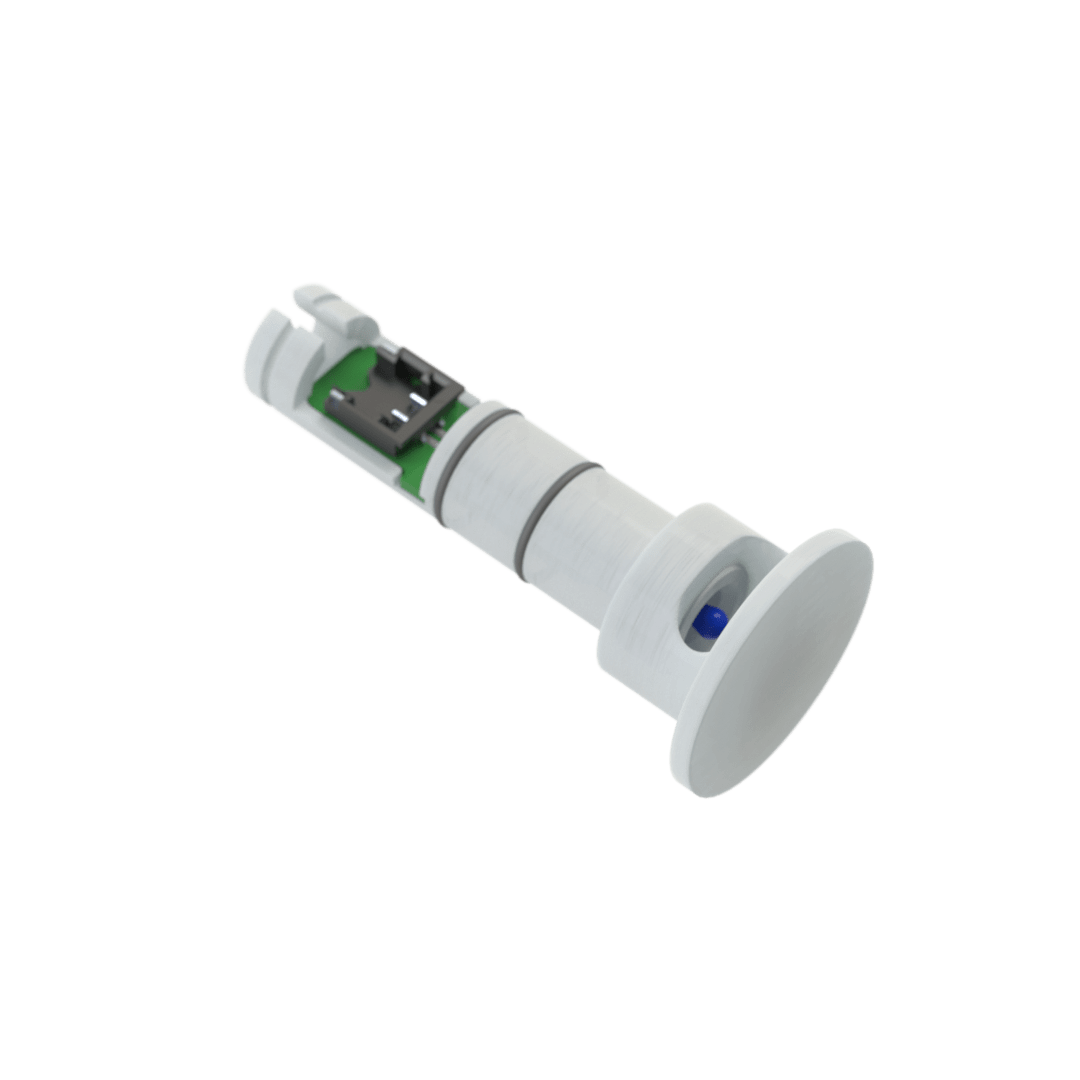

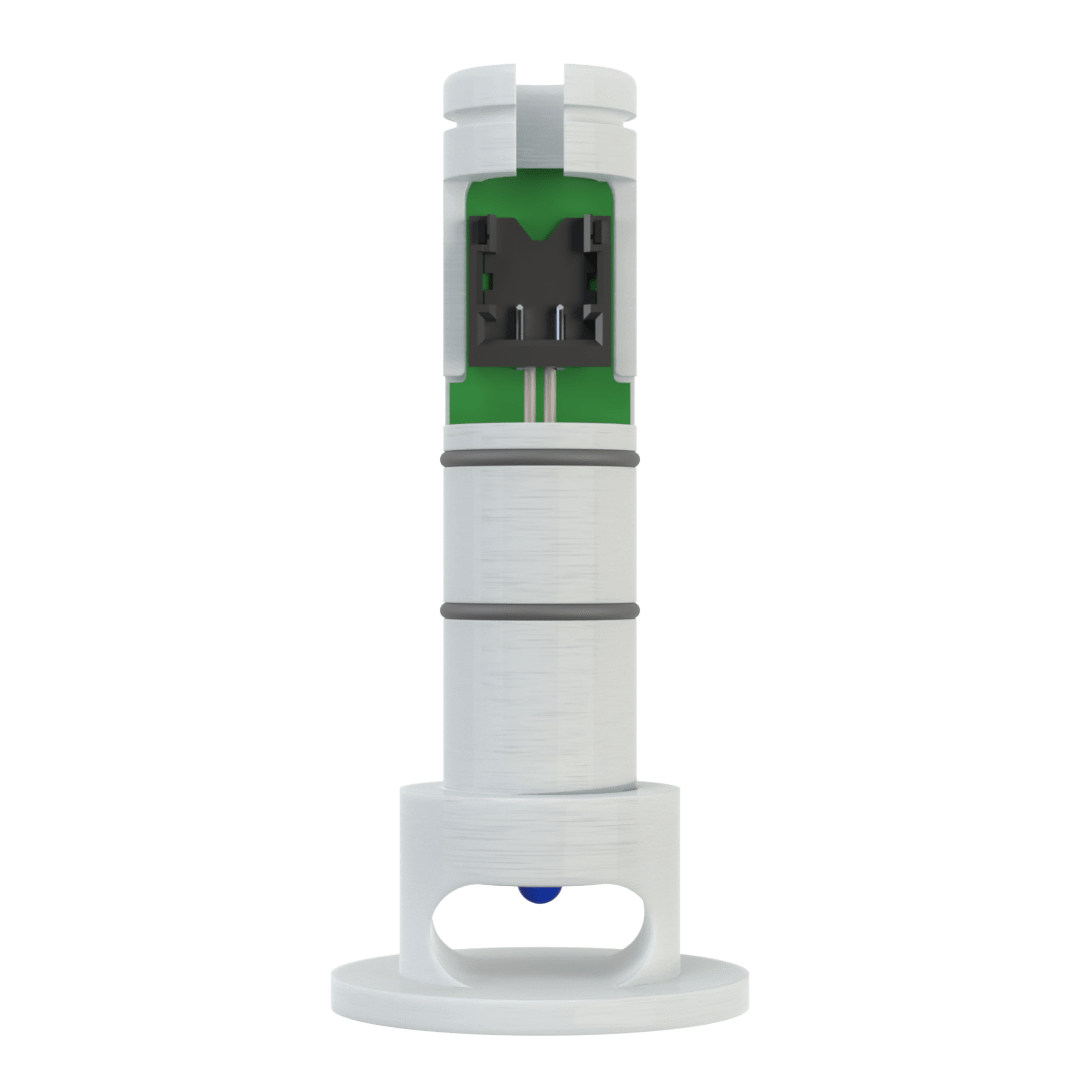

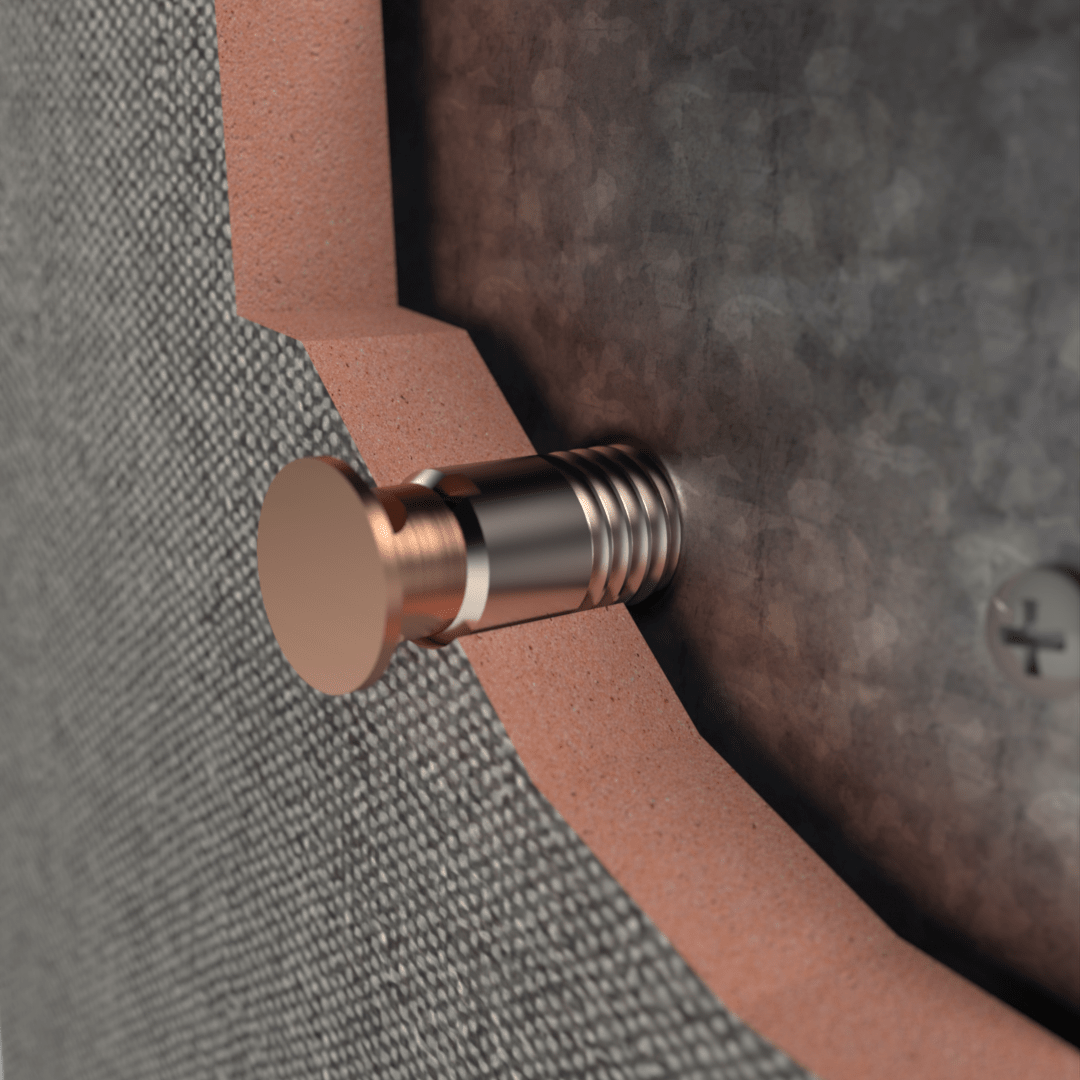

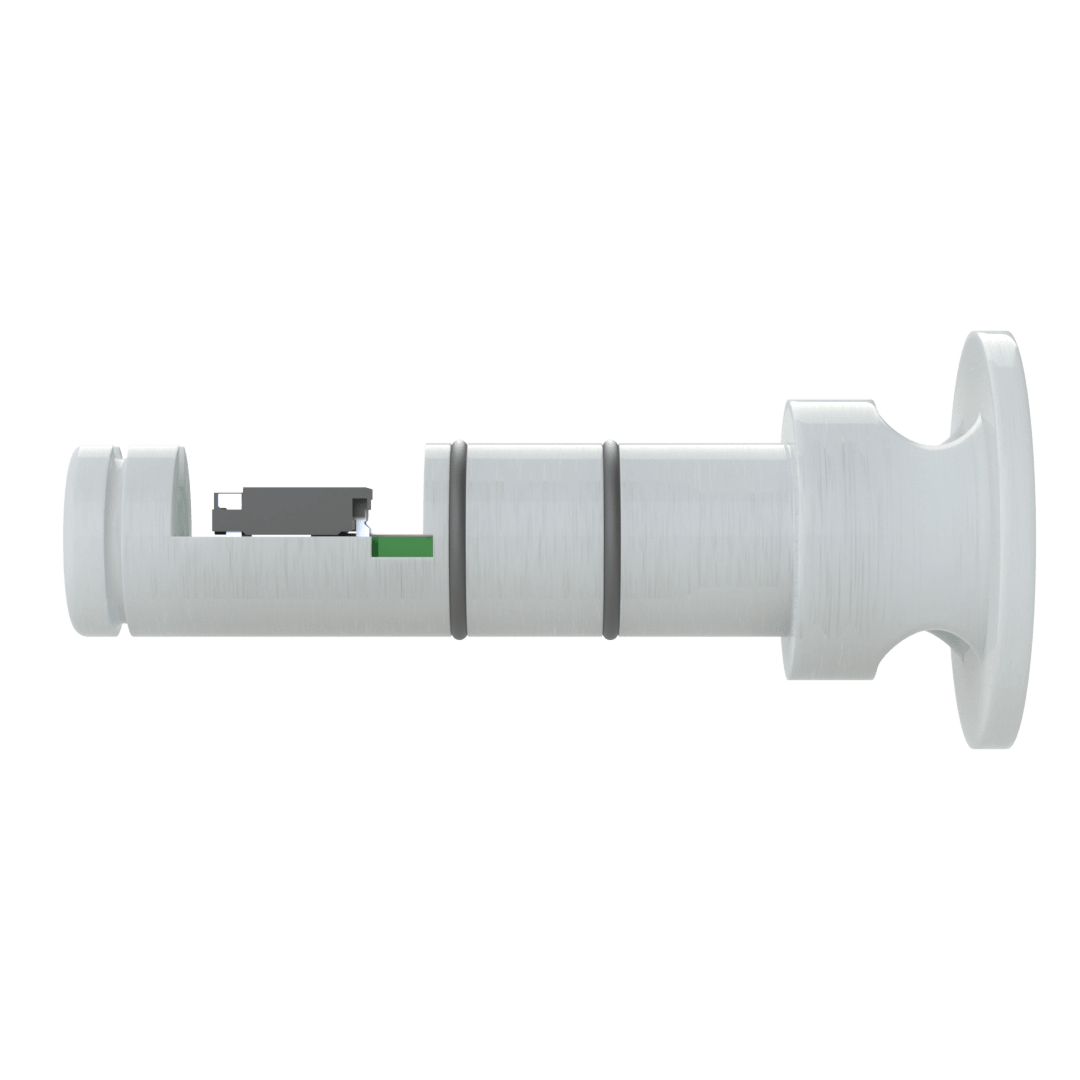

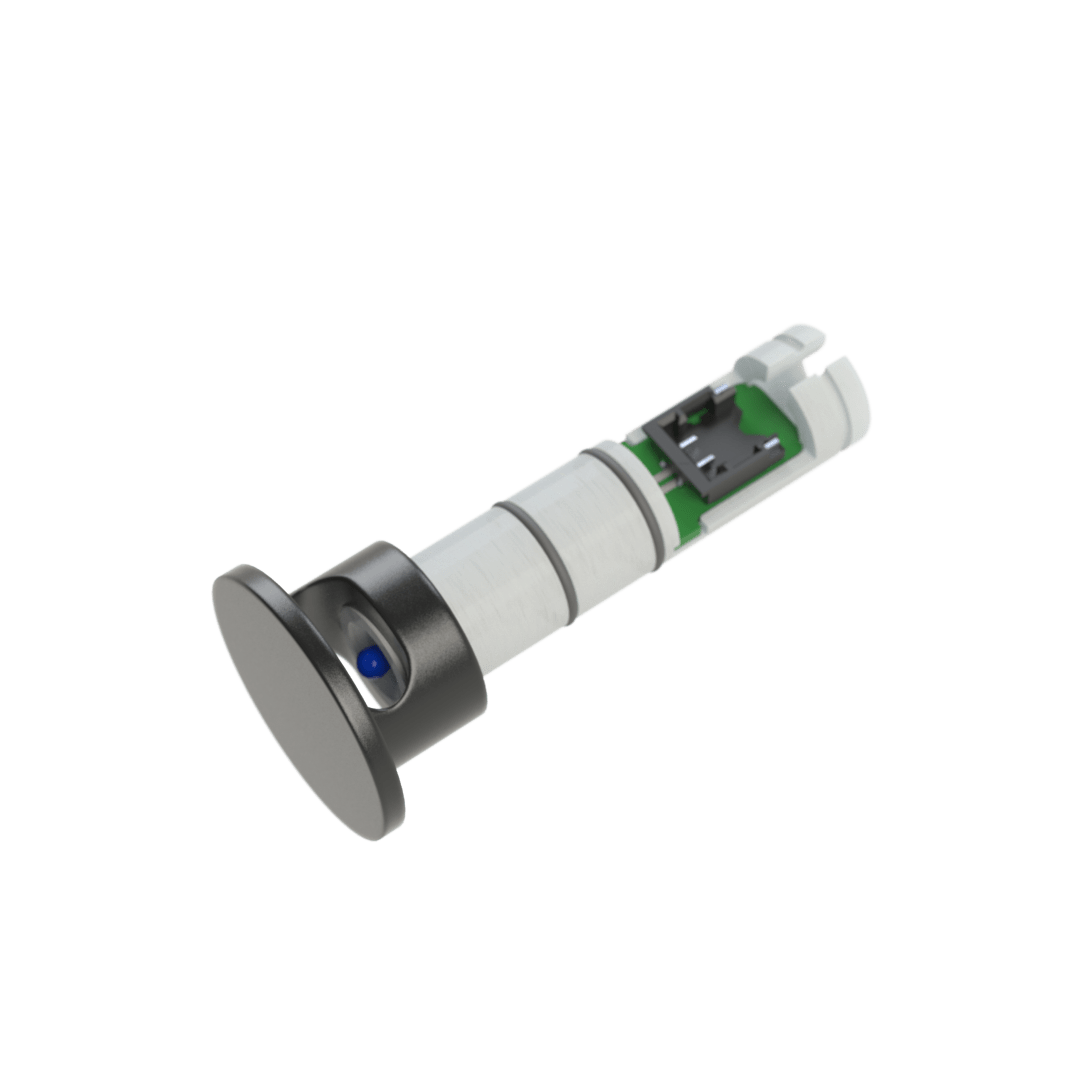

A remote wall sensor designed to be used with Polar Bear Design thermostats to measure the ambient air temperature within a room. Supplied with either a black or white plastic tip. Custom tips are available in a metal finish as a separate accessory; WL-TIP-ff-10PK. Follow this link for more information on available finishes.
_Camera_view%202.png?updated=1712585498)
_Camera_view%202.png?updated=1712585498)
_Camera_view%202.png?updated=1712585495)
.jpg?updated=1712585287)
.jpg?updated=1712585295)
%20(3)_Camera_WL3-exp-Angle.png?updated=1712585497)
%20(3)_Camera_WL3-exp-Side%203.png?updated=1712585500)
%20(5)_Camera_WL3-WallCutAway-Angle2%202.png?updated=1712585504)
%20(5)_Camera_WL3-WallCutAway-Angled%202.png?updated=1712585500)
%20(5)_Camera_WL3-WallCutAway-Angled.png?updated=1712585503)
%20(6)_Camera_WL3-WallCutAway-Angle2%203.png?updated=1712585505)
%20(4)_Camera_WL3-WallCutAway-Angle2.png?updated=1712585504)
_Camera_view%201.png?updated=1712585496)
_Camera_view%203.png?updated=1712585500)
_Camera_view%204.png?updated=1712585498)
|
Operating range: |
0 to +50°C 0 to 9% RH non-condensing |
|
|
Accuracy: |
±0.5°C in range 0 to 70°C |
|
|
Form factor: |
⌀6mm body with screw tip |
|
|
Protection: |
IP30 |
|
|
Termination: |
28AWG Cable Tail, 300mm long |
|
|
Variants: |
WL4-10K3-03-BL-10PK |
NTC Thermistor, 10kΩ @ 25°C, black tip, pack of 10 |
|
WL4-10K3-03-WH-10PK |
NTC Thermistor, 10kΩ @ 25°C, white tip, pack of 10 |
|
|
WL4-PT1000-03-BL-10PK |
PT1000, black tip, pack of 10 |
|
|
WL4-PT1000-03-WH-10PK |
PT1000, white tip, pack of 10 |

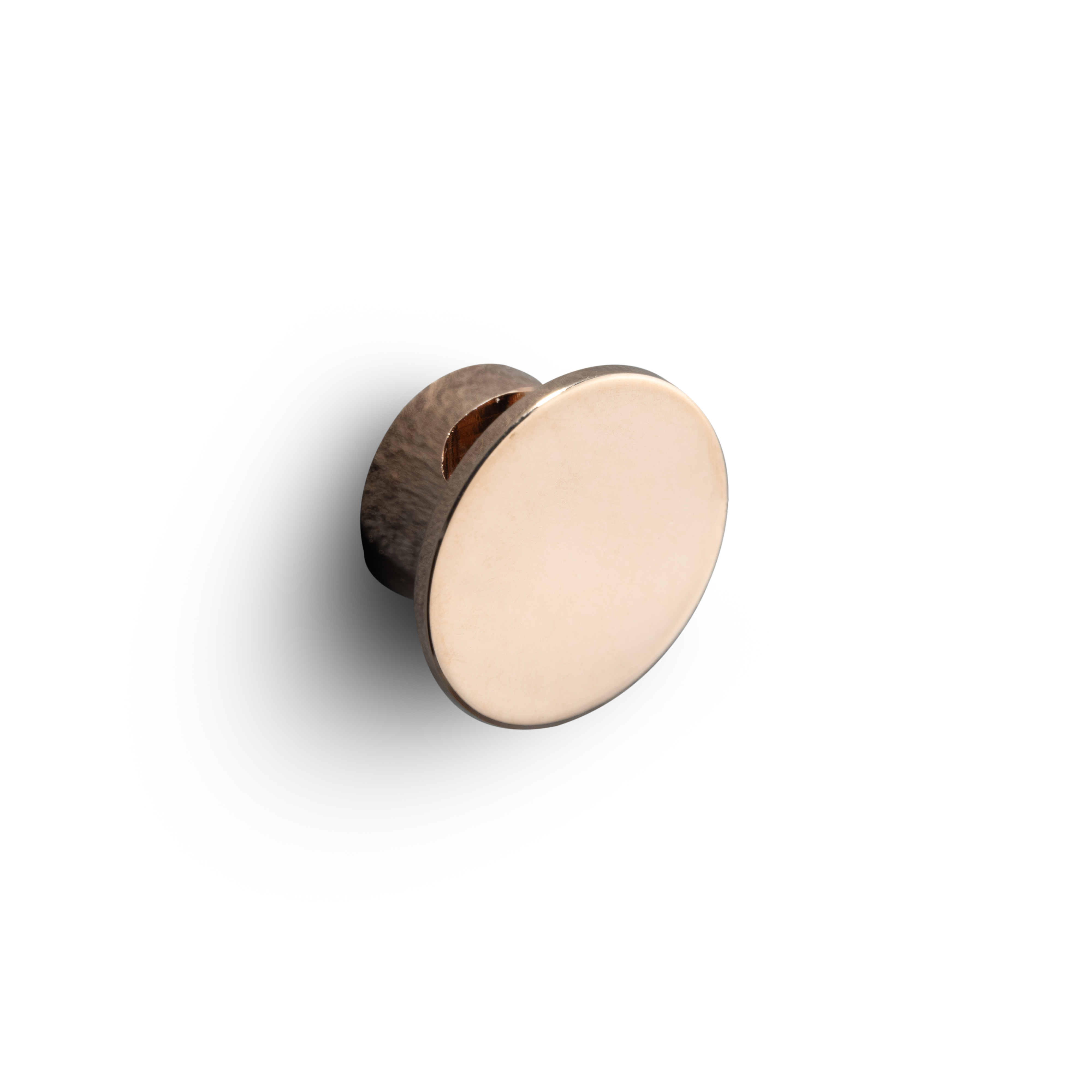

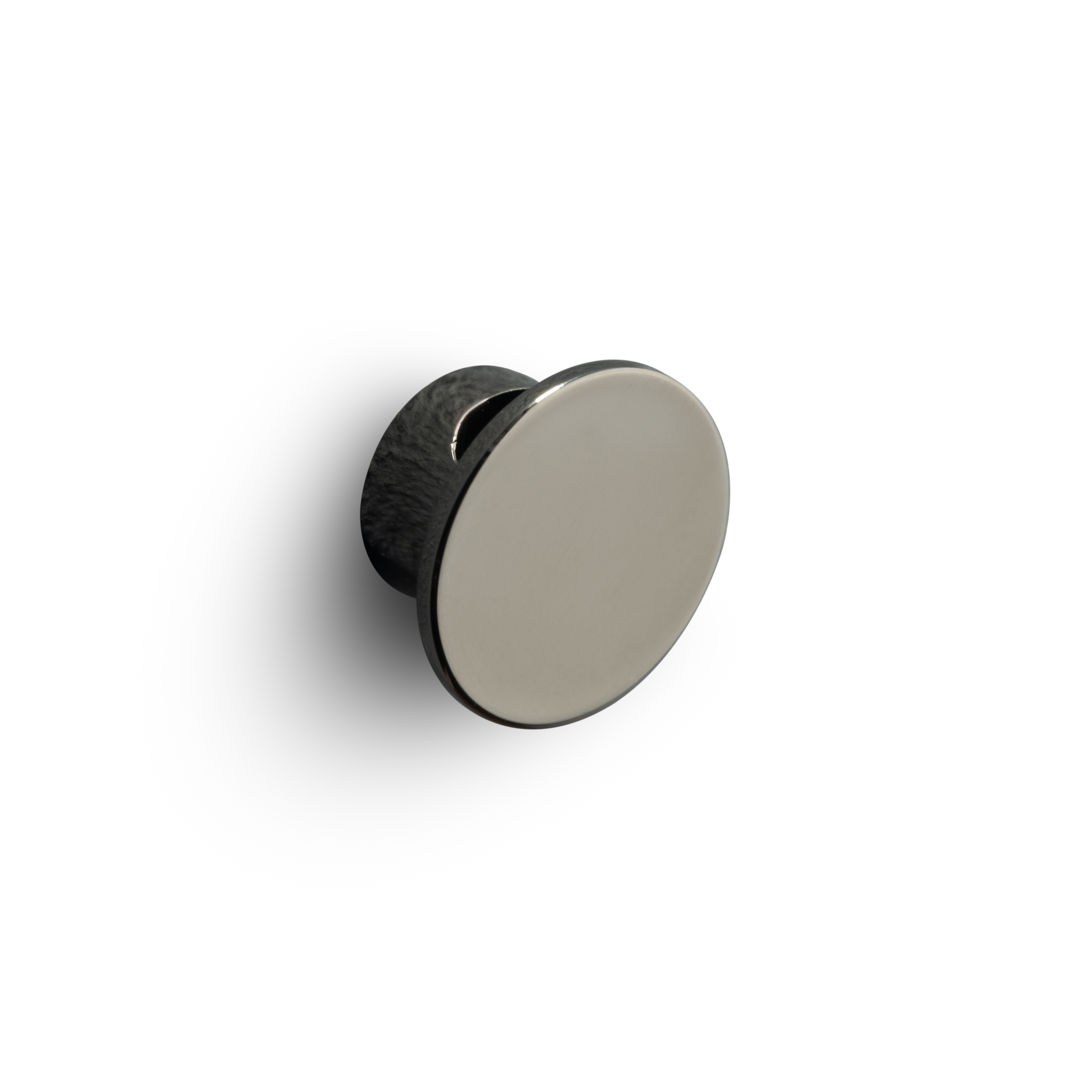

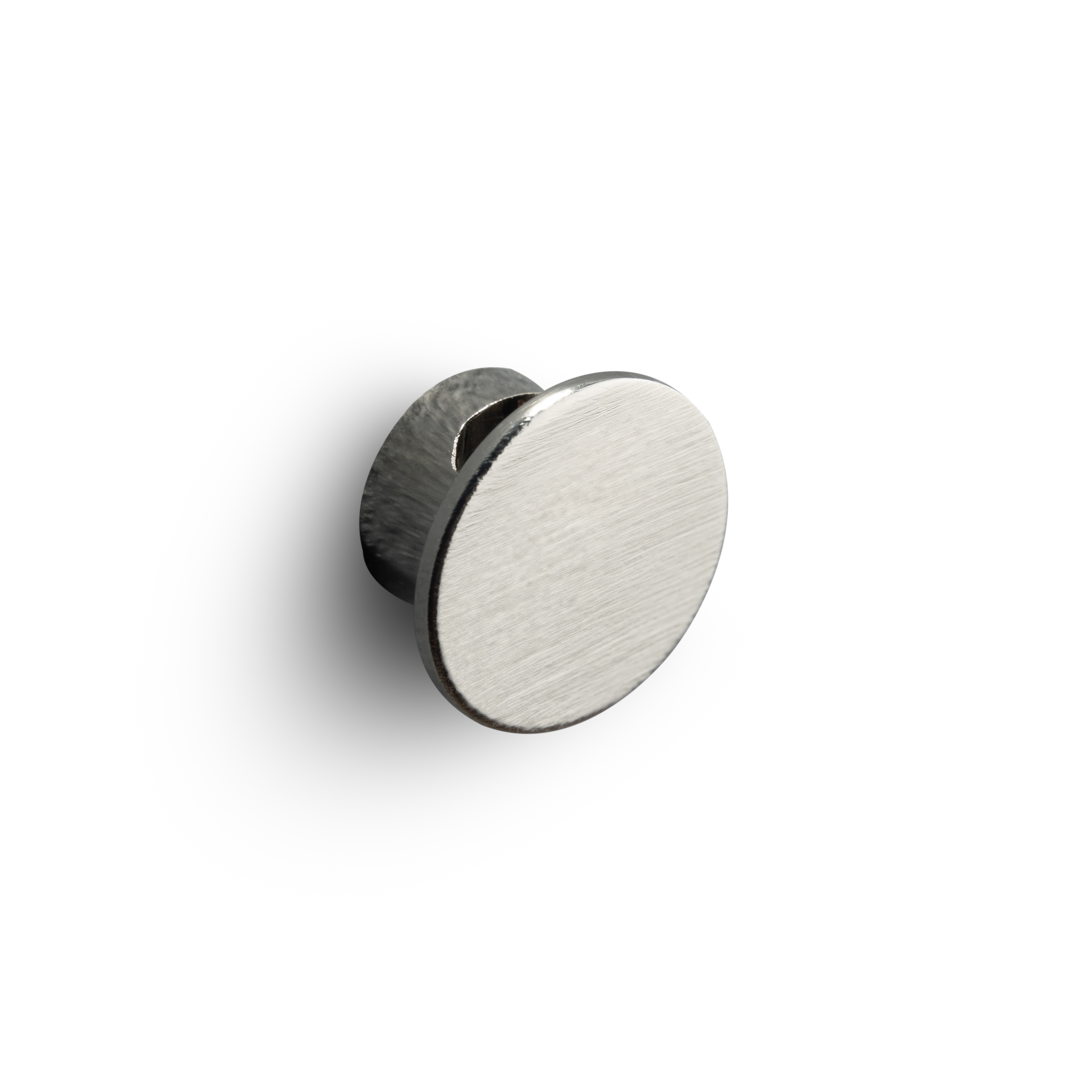

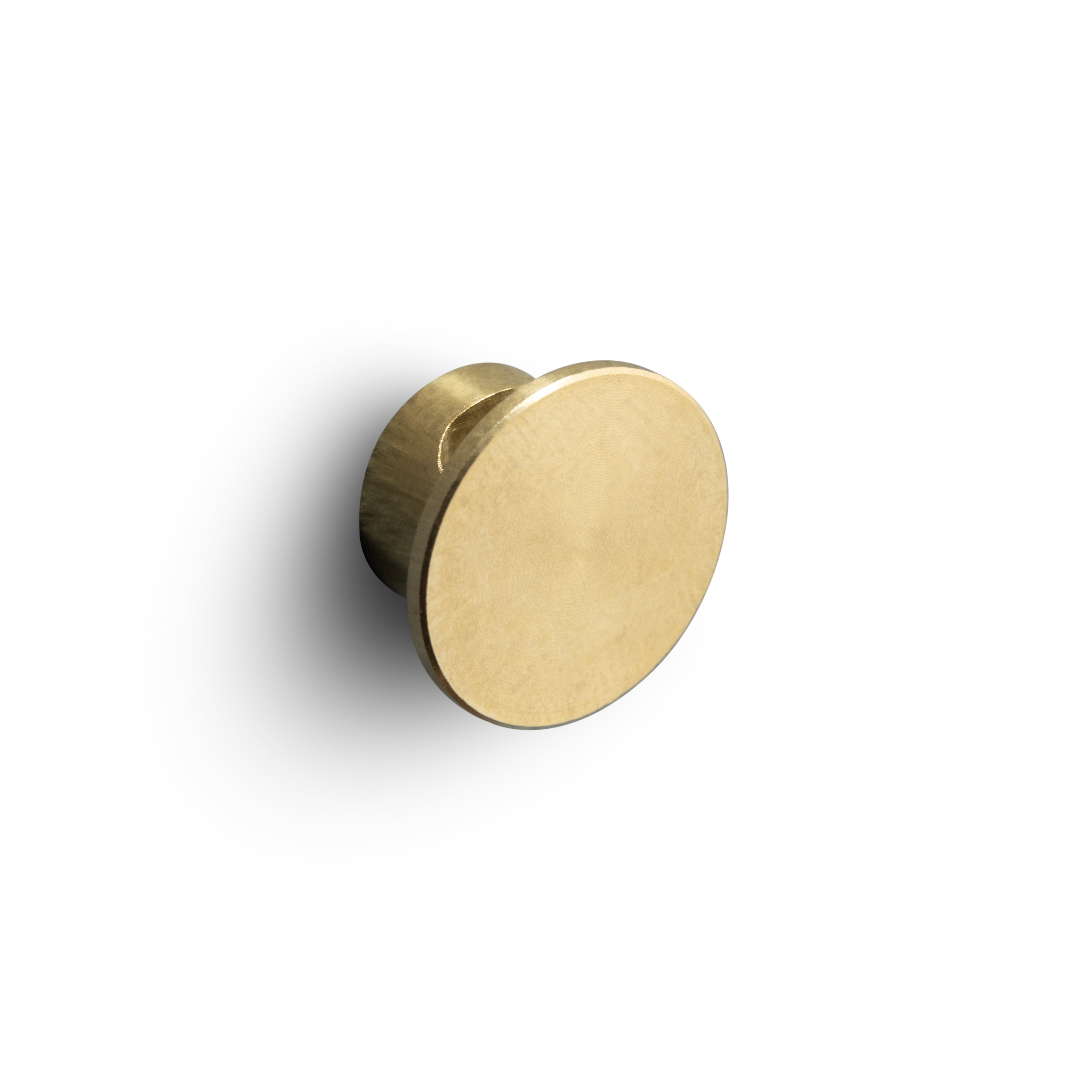

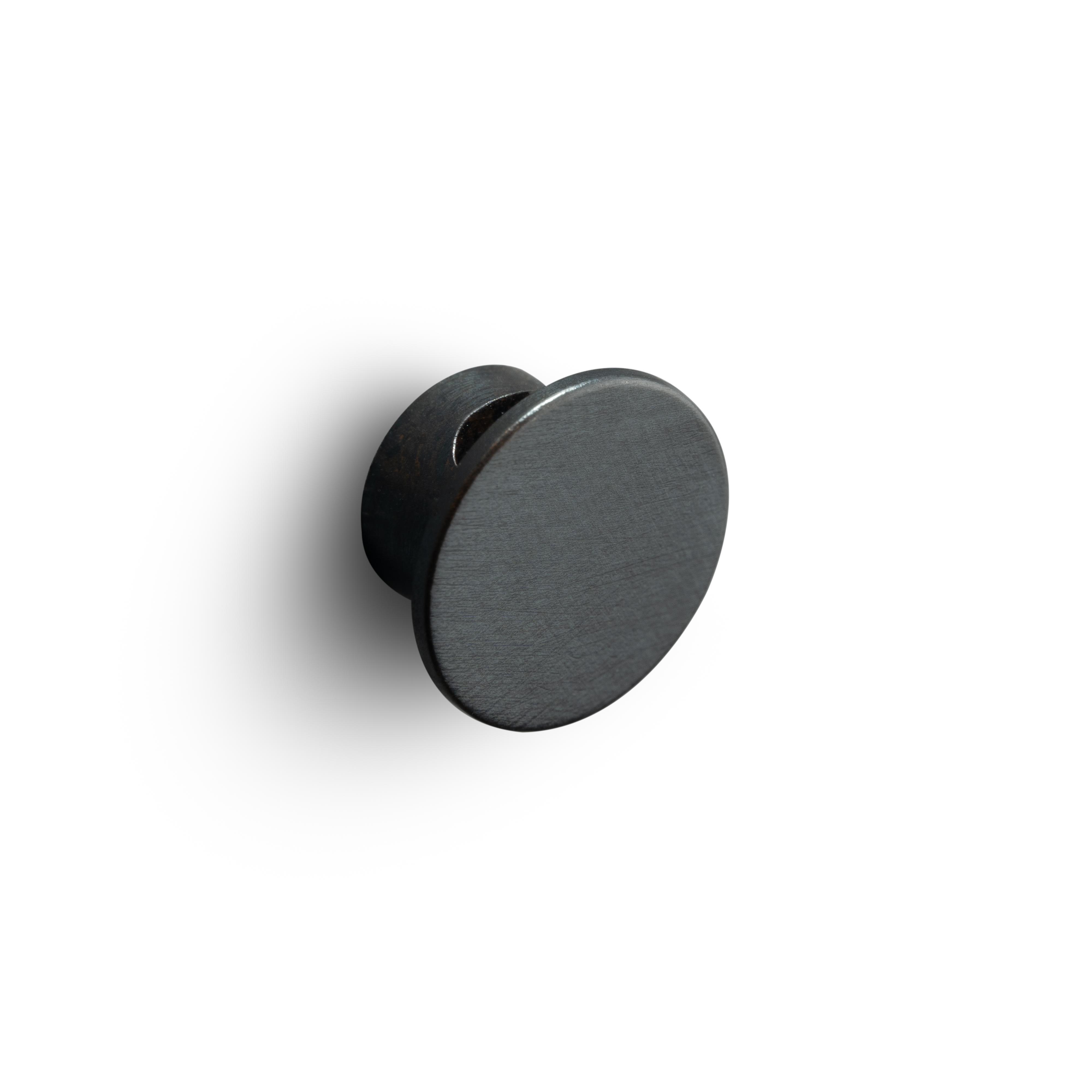

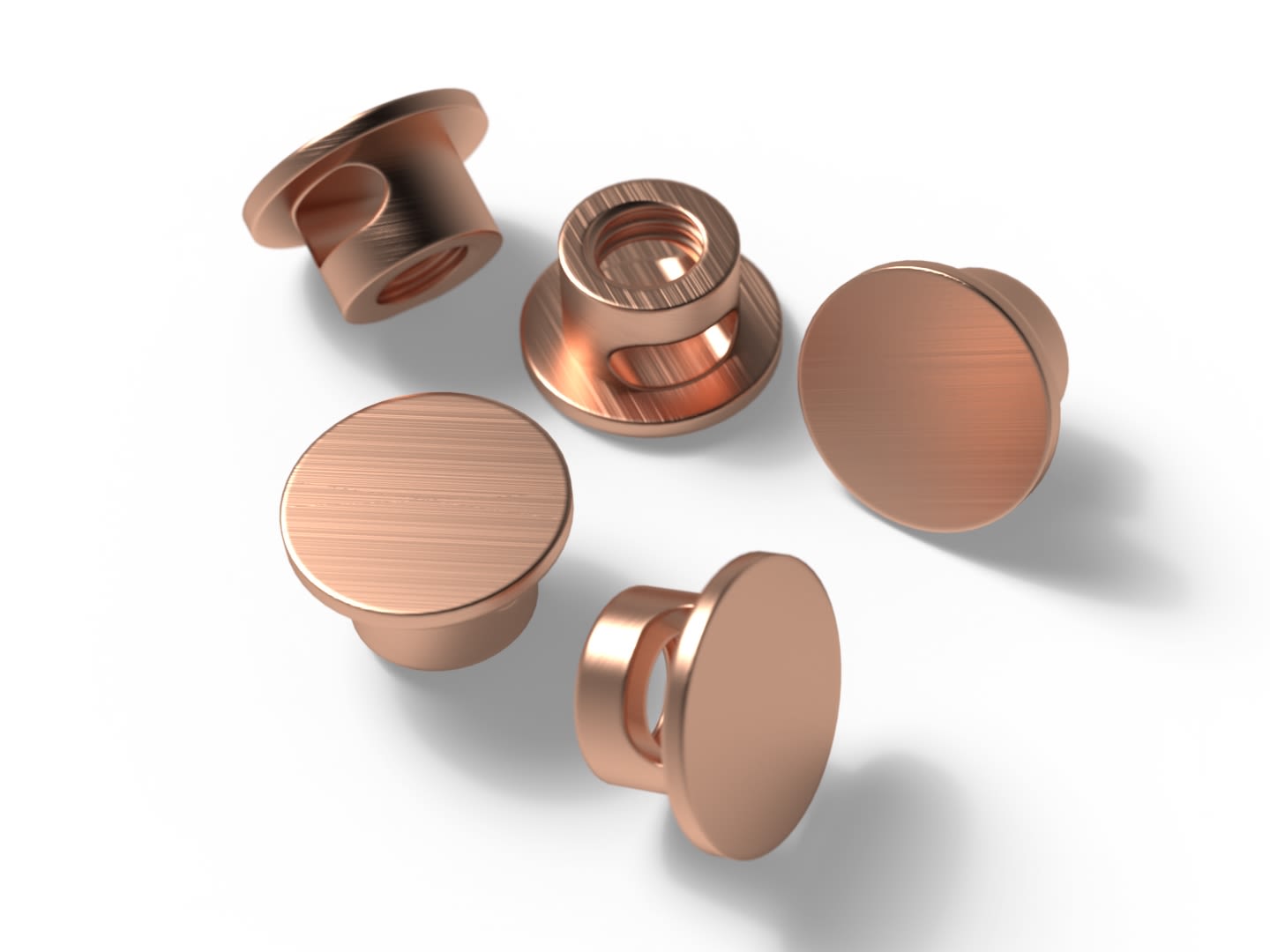

Metal Finishes Available in the Polar Bear Design Finishes
