With the WL3 1st Fix Mounting kit, you can create a stable and flawless base for the miniature WL3 NTC & PT1000 temperature probes. Its exclusive design can be easily installed during the 1st fix, and it is adaptable to various wall thicknesses. The mounting kit is compatible with a standard square UK back box and offers a secure placement for the WL4 sensor.

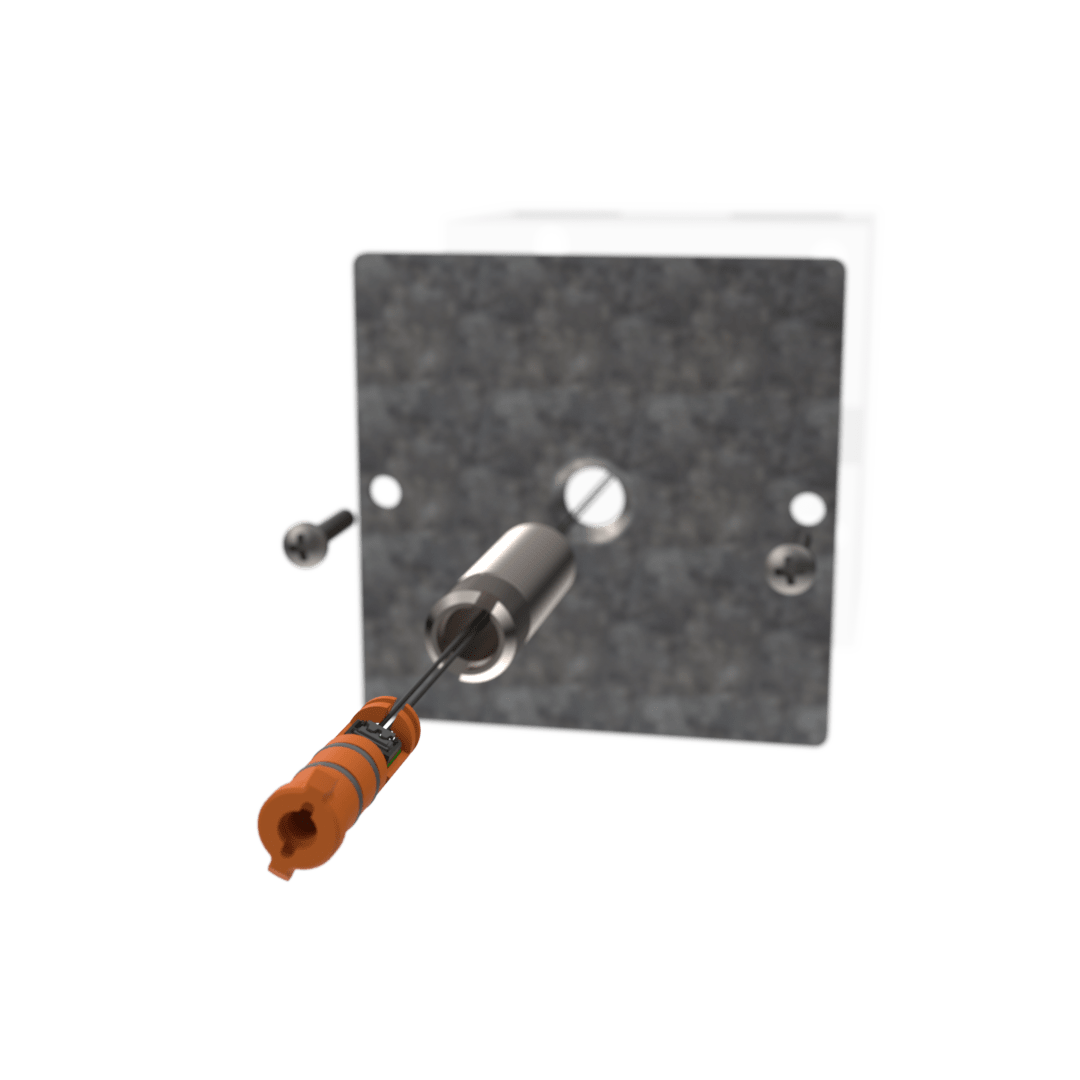

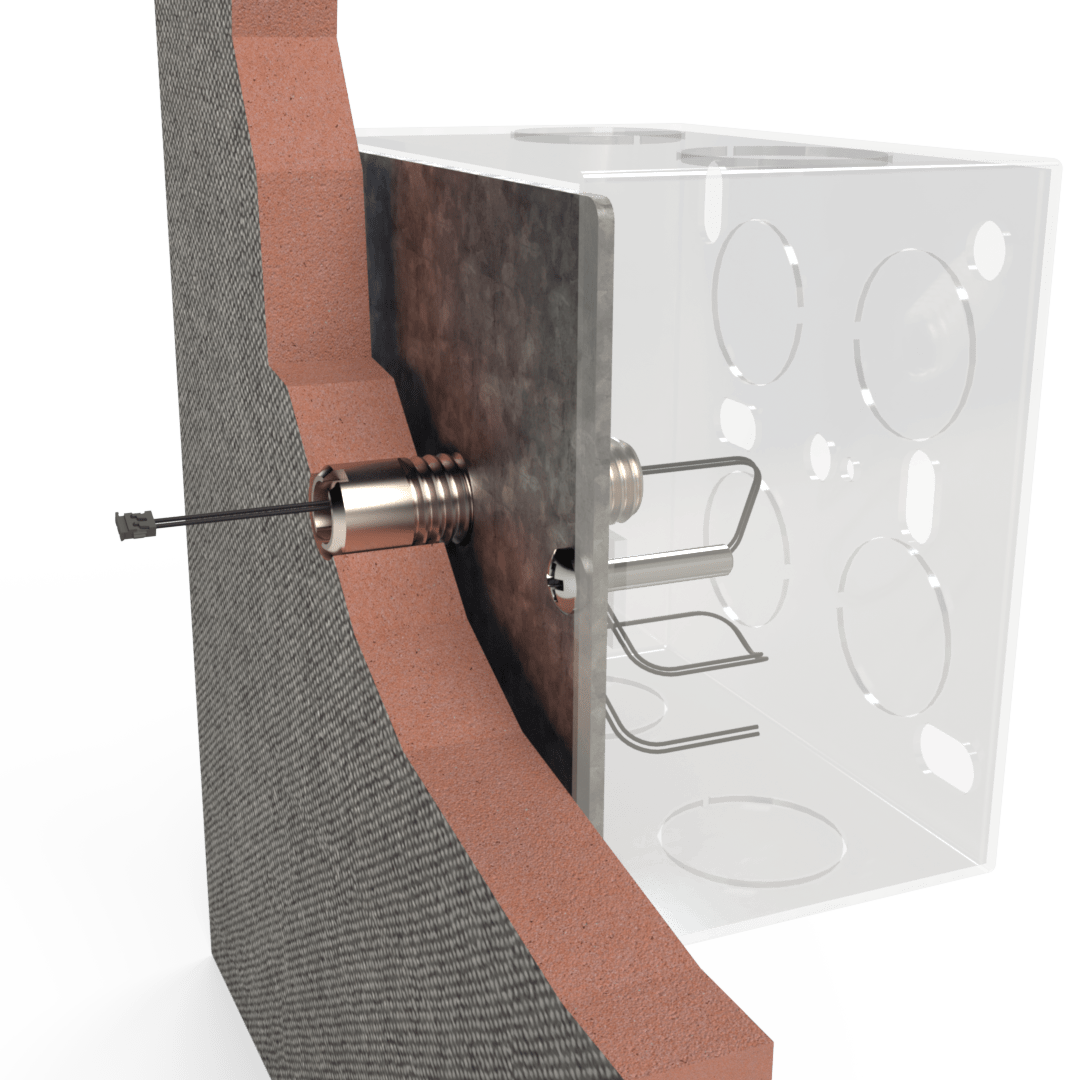

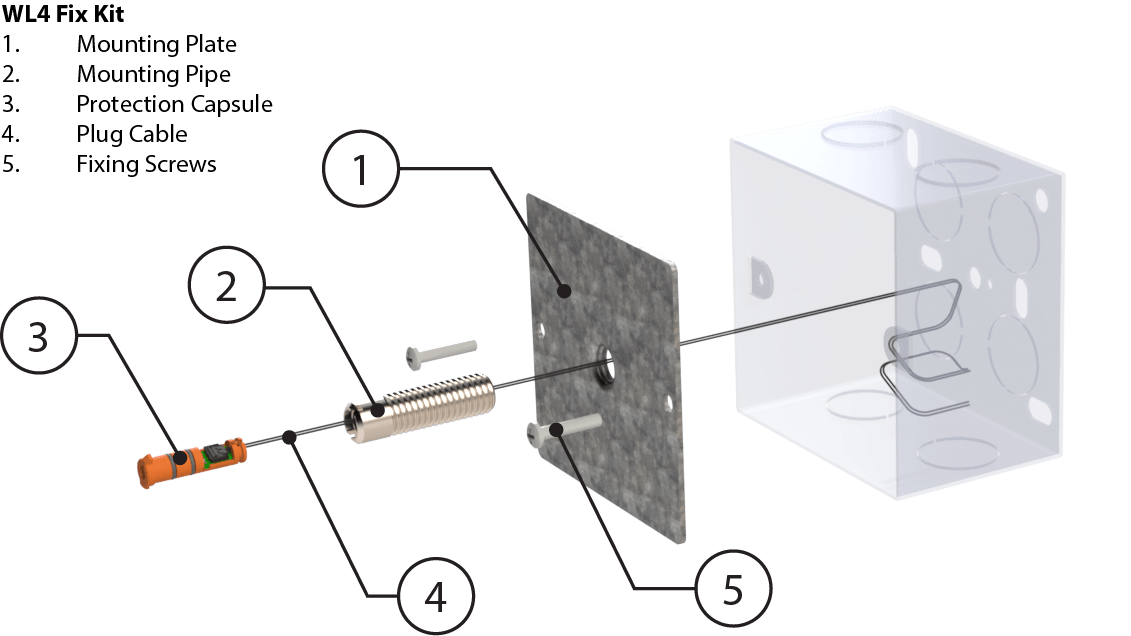

The fixing kit comprises of two primary components - the mount plate and an adjustable threaded pipe. The mount plate is secured onto a standard UK back box located behind the wall's final surface. The threaded pipe is then utilized to fine-tune the depth of the pipe's tip to match the finished surface's appropriate level.

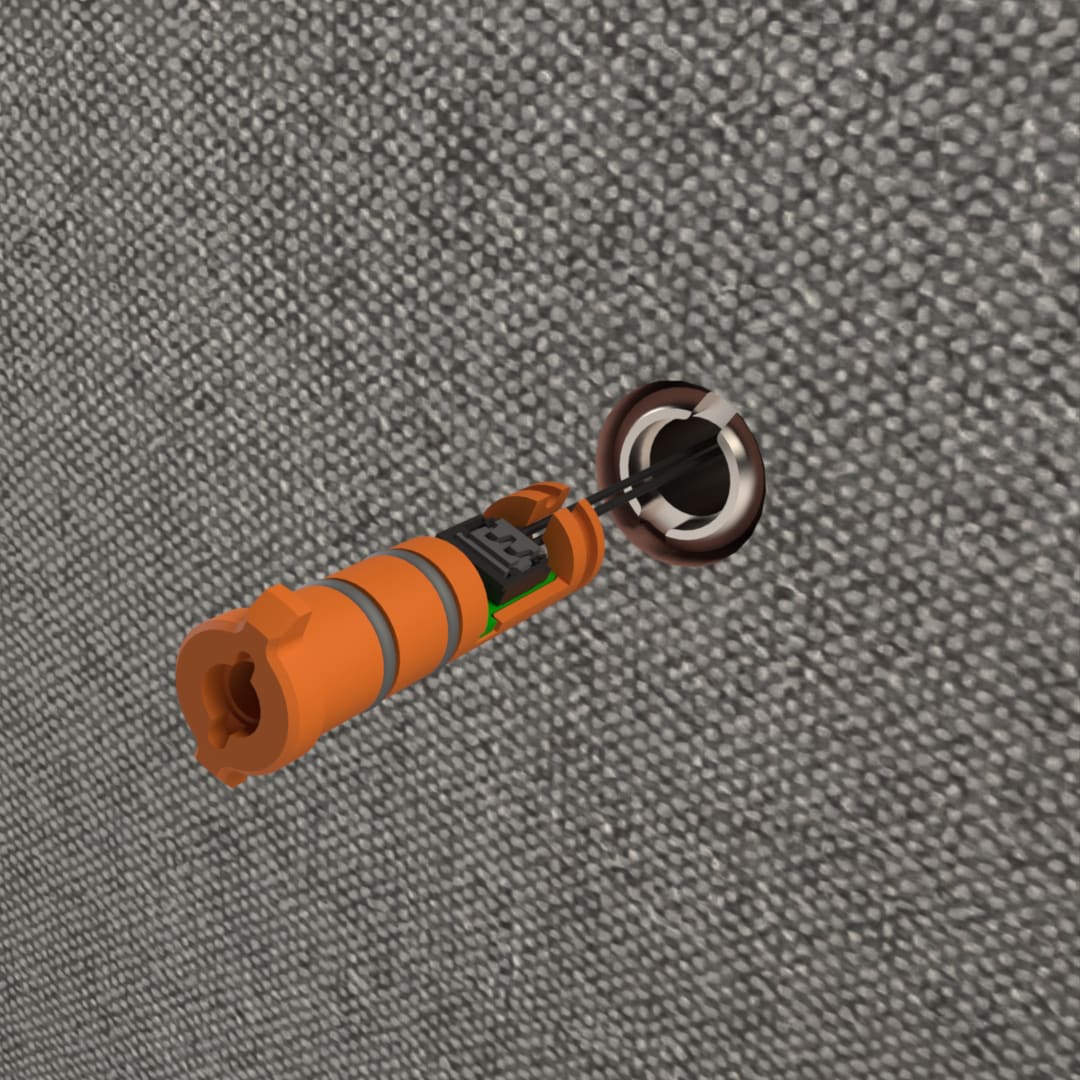

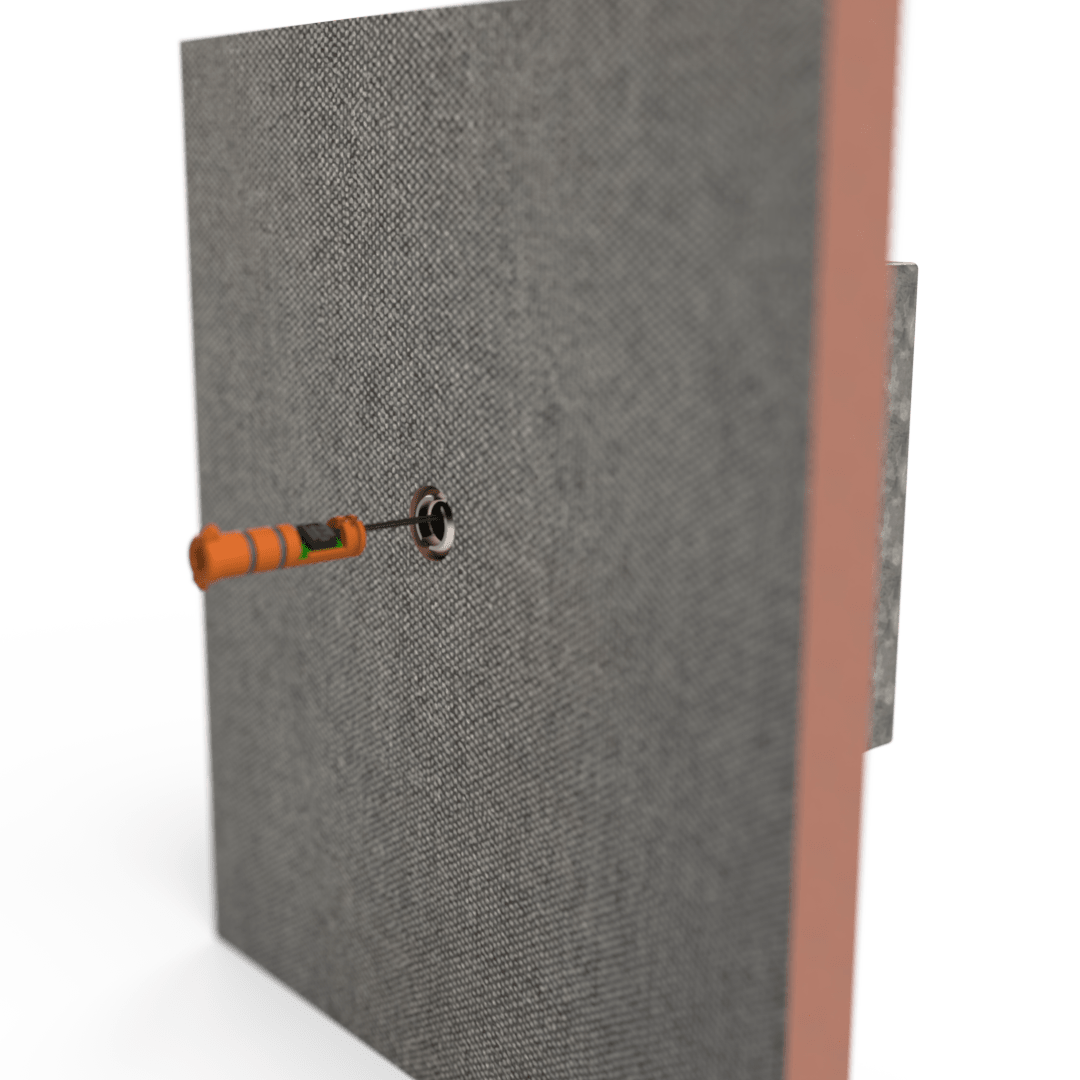

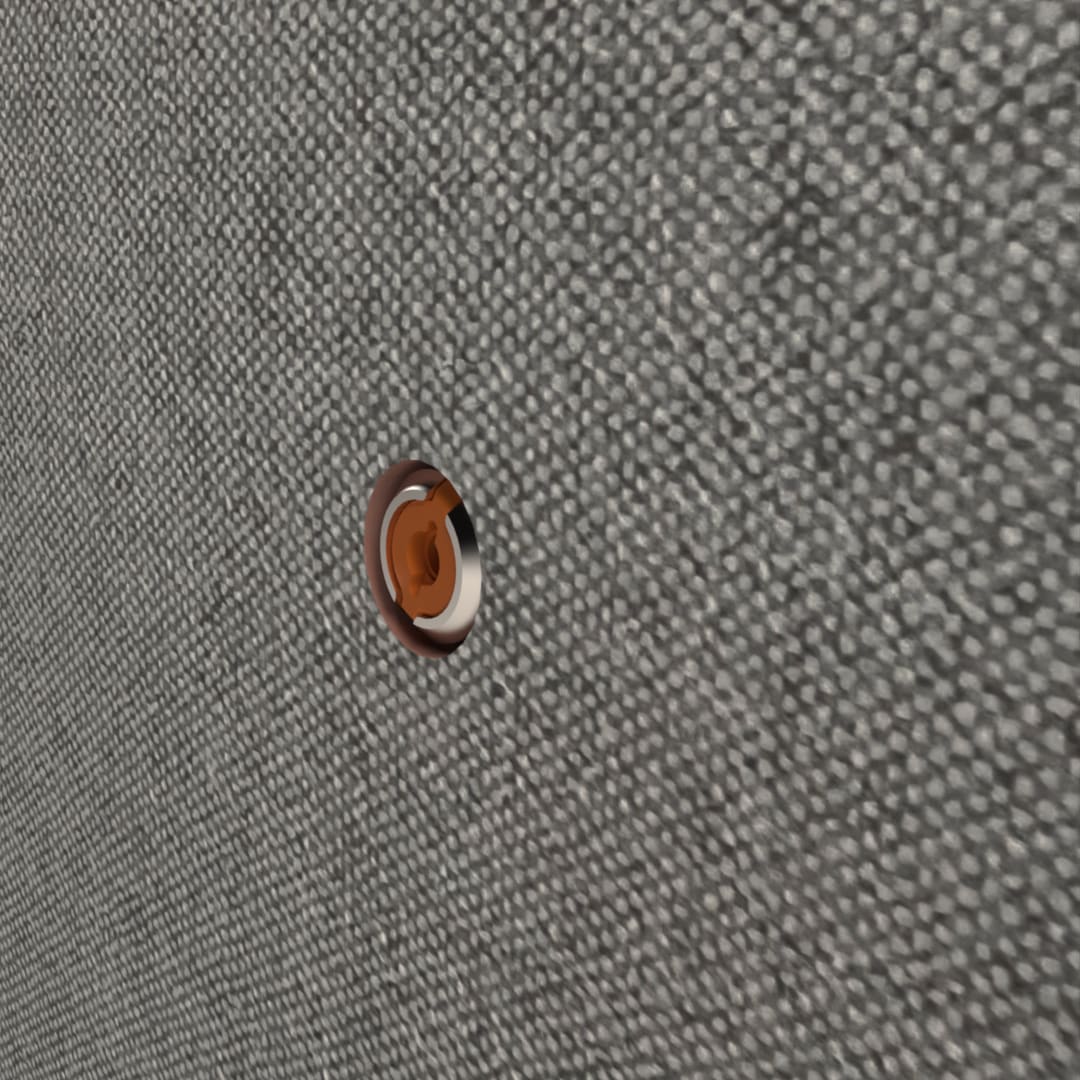

Once adjusted, the mount plate can be concealed by the final wall finish, leaving only the threaded pipe's tip visible. The threaded pipe can be further tweaked for precise adjustment, and a final coat of filler can be applied to the chamfered edge for a seamless finish.

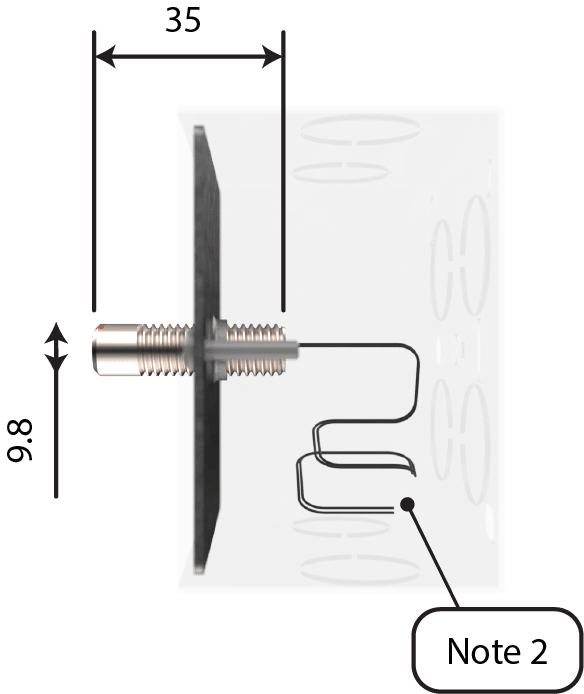

Notes

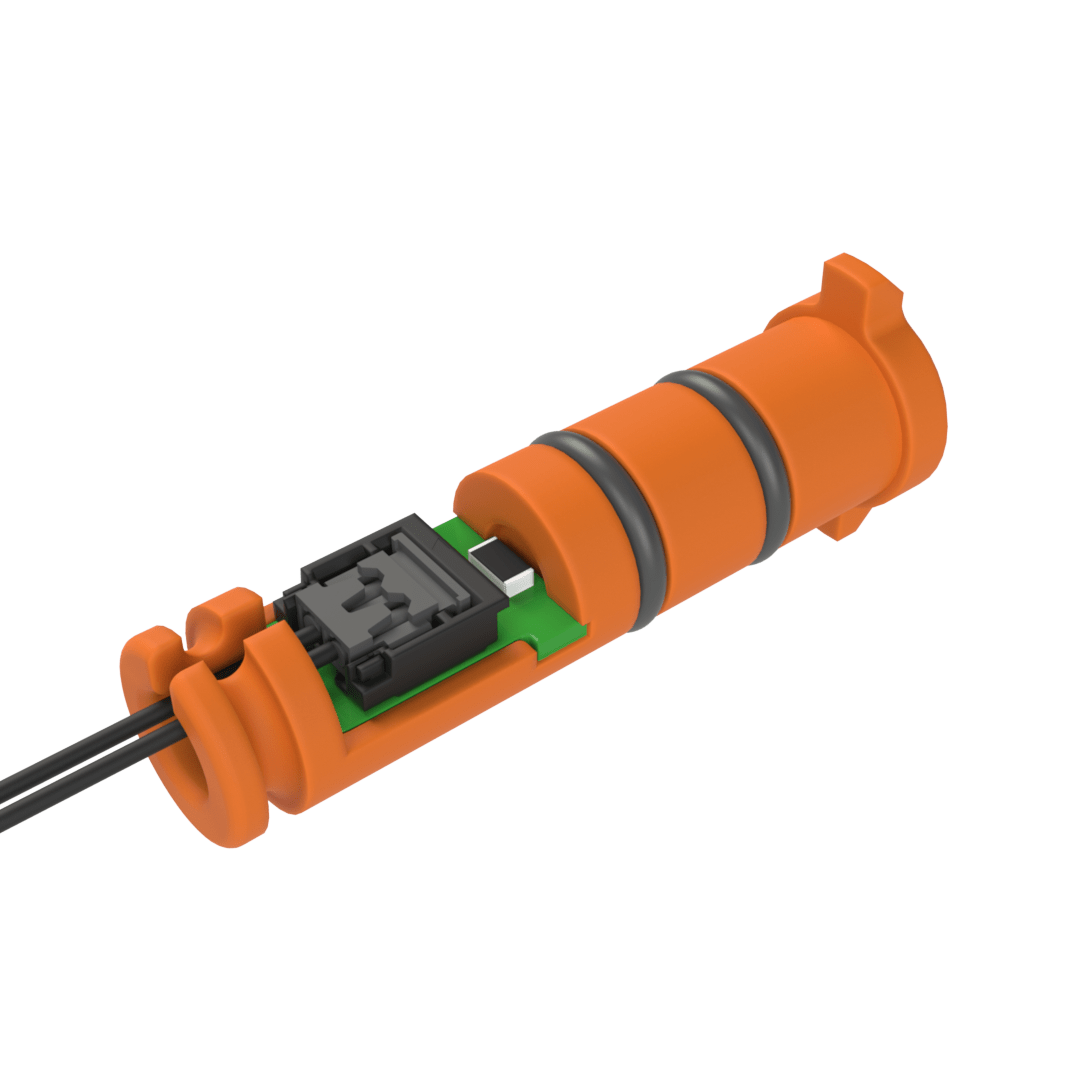

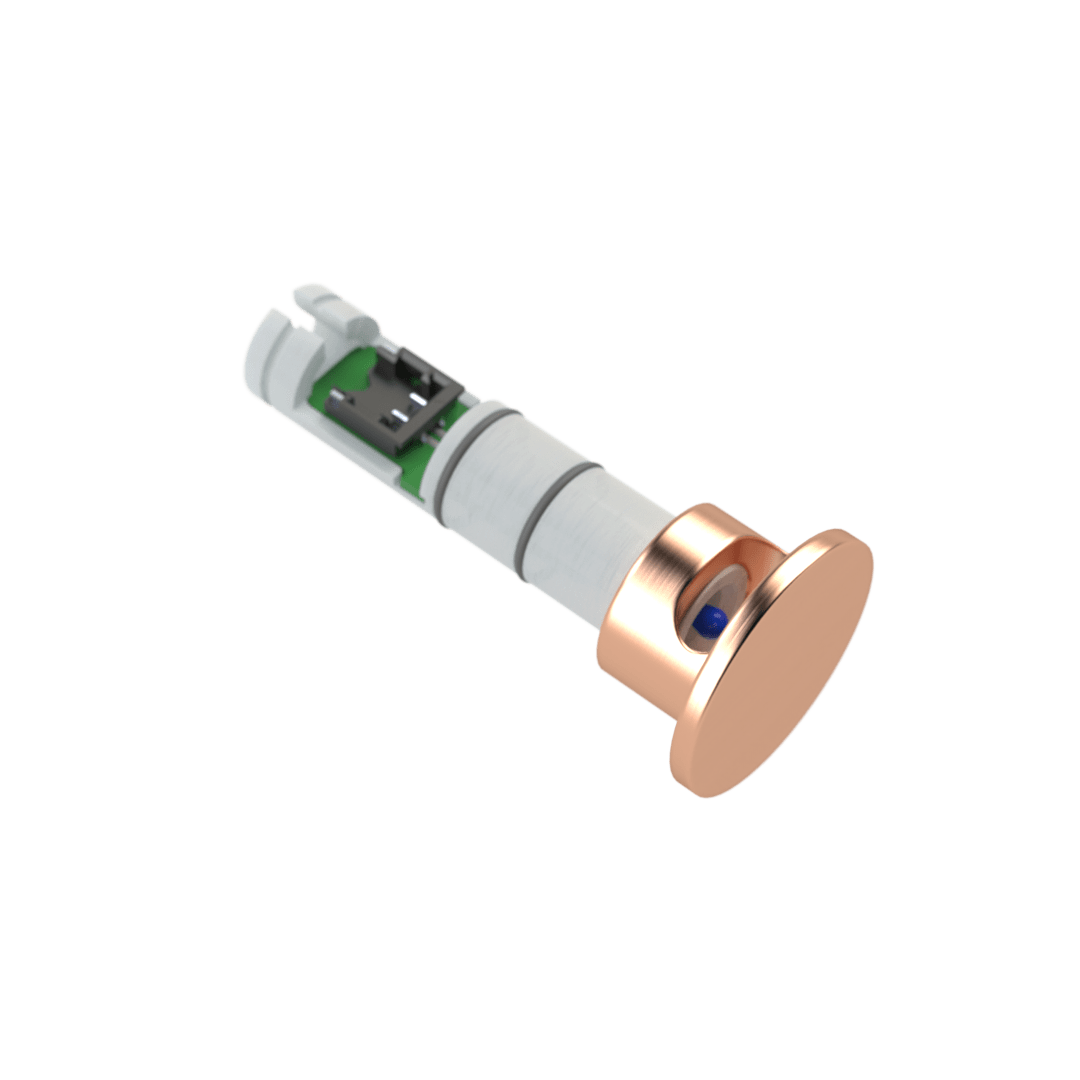

Capsule head

1. Use flat head screwdriver to adjust depth
2. Use M3 screw to attach to head to aid removal of capsule

Use bootlace ferrules to ensure good connection to field cabling

documentation/Design/DataSheets/WL4-10k3-03.pdf

documentation/Design/DataSheets/WL4-FIX-KIT.pdf
