Alisse Thermostat, by Polar Bear Design

Using the foundation of the Ursium Pro Thermostat base unit, Polar Bear Design delivers a new level of Luxury Heating & Cooling Control systems with a wide range of designer finishes that complement many brands of lighting controls and accessories.

AESTHETIC FEATURES

• Digital crown temperature control user interface

• Bright Full Colour wide viewing angle Display

• Aesthetic Matching with leading manufacturer lighting keypads

• Customisation of finishes and custom digital crown using materials like carbon fibre, wood, leather, acrylics and

gold.

TECHNICAL FEATURES • Intuitive Digital Crown for simple control

• Full Colour IPS Capacitive Touch Screen

• Independently Control of two rooms for both heating and cooling

• Optional Towel Rail Control

• Optional Hot Water Control

• Centigrade & Fahrenheit with dynamic swap support

• External / Remote temperature probe inputs

• Minimum and Maximum floor temperature control

• Virtual Temperature interface with VRV & VRF

• Modbus Communications Interface

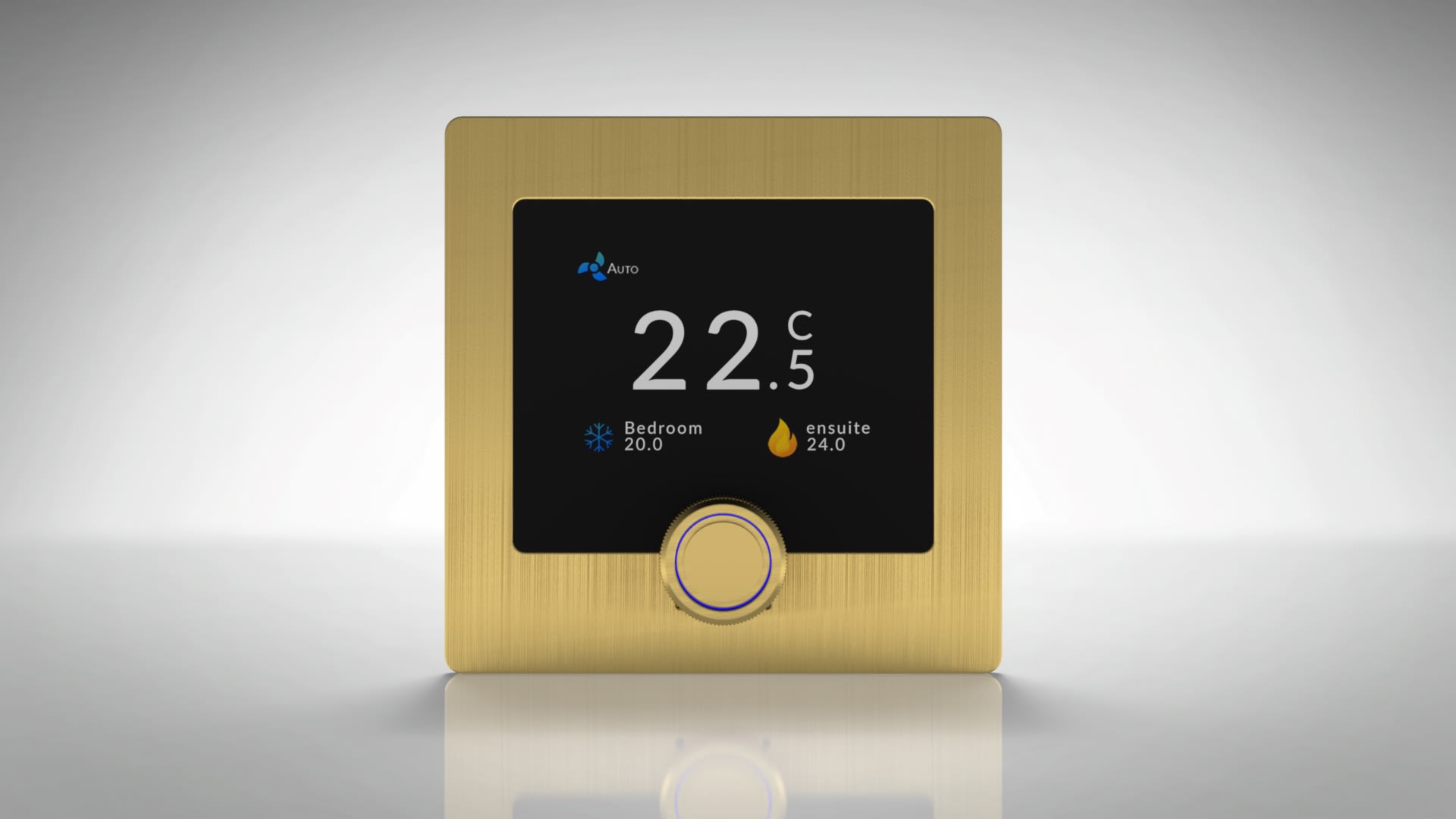

Digital Crown

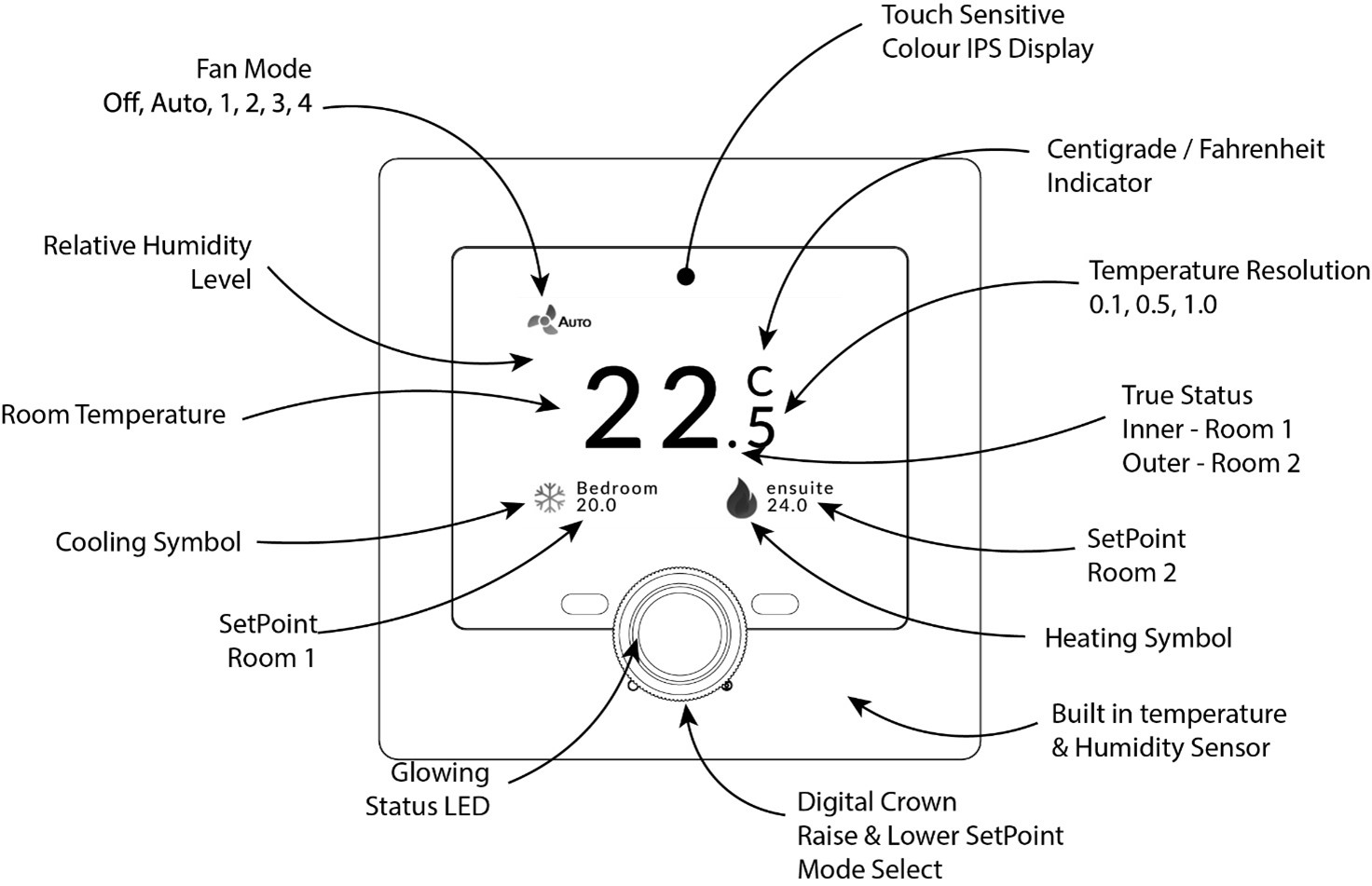

The digital crown is the perfect user interface for controlling temperature. It is simple and universally understood. Turn the crown up to increase the room temperature (setpoint), turning it down to reduce the room temperature. If the new setting will cause the room to heat then the numbers will turn orange, if the new setting is going to trigger the cooling, the numbers turn blue. A further confirmation is then given to the user by the digital crown softly glowing either red or blue for a short period of time. The screen then displays an orange flame or blue snowflake symbol as confirmation on the main/home screen.

Additional functions available to the user are accessed by pressing the digital crown. Each press cycles from one feature to the other. If features are disabled in the settings they do not appear to the user, removing confusion. As default press once and the user can control the fan speed, OFF, AUTO, 1,2,34,5,6 (installer has the ability to change these values). Press again and the user has control over the temperature of zone 2 for both heating and cooling if available. Press again, and the user can control the towel radiator, OFF, AUTO or set a time in 5min increments, by simply turning up the dial.

Dual Zone / Dual Room

The Ursium is a dual zone thermostat allowing two rooms to be monitored and control heating and cooling completely independently. The second room is achieved by using a number of remote probes wired into the rear of the device. If the thermostat is installed in a single zone environment, then zone 2 can be disabled. When disabling zone 2 any symbols or pages are removed from the user’s interface.

Enabling Heating Only or Cooling Only

The Ursium by default is a Heating and Cooling thermostat controller. However, it can be configured as a ’Cooling only’ or ’Heating only’ device (per Zone). When these changes are set, any symbols or pages relevant to those features are removed from the user’s interface, eliminating confusion.

Humidity

As default, the thermostat has a built-in humidity sensor for zone 1. This humidity sensor can be enabled or disabled from the user display. Access to the Humidity readings is always available from the Modbus control interface.

Temperature Sensors & Averaging

Ursium can accept up to five remote probes wired into the back of the thermostat. These sensors should be 10k3 standard. The five probes are allocated as three to Zone 1 and two to Zone 2.

Zone 1 can use these additional sensors for room averaging or the internal sensor can be disabled allowing for a more flexible placement of the thermostat due to accessibility or aesthetics.

Each zone can use an individual probe for sensing floor temperatures.

The temperature readings available from the sensor probes can always be accessed over the Modbus communications allowing for the Ursium thermostat to be used as a mini temperature hub for rooms or areas that don’t have thermostats or sensing services such as temperature of AV equipment, flow and return pipes, Manifolds, etc...

Model Number

URS-ACM-NONE

URS-FP1-ALI-ff

Single gang, electronics base unit only (with local AC control)

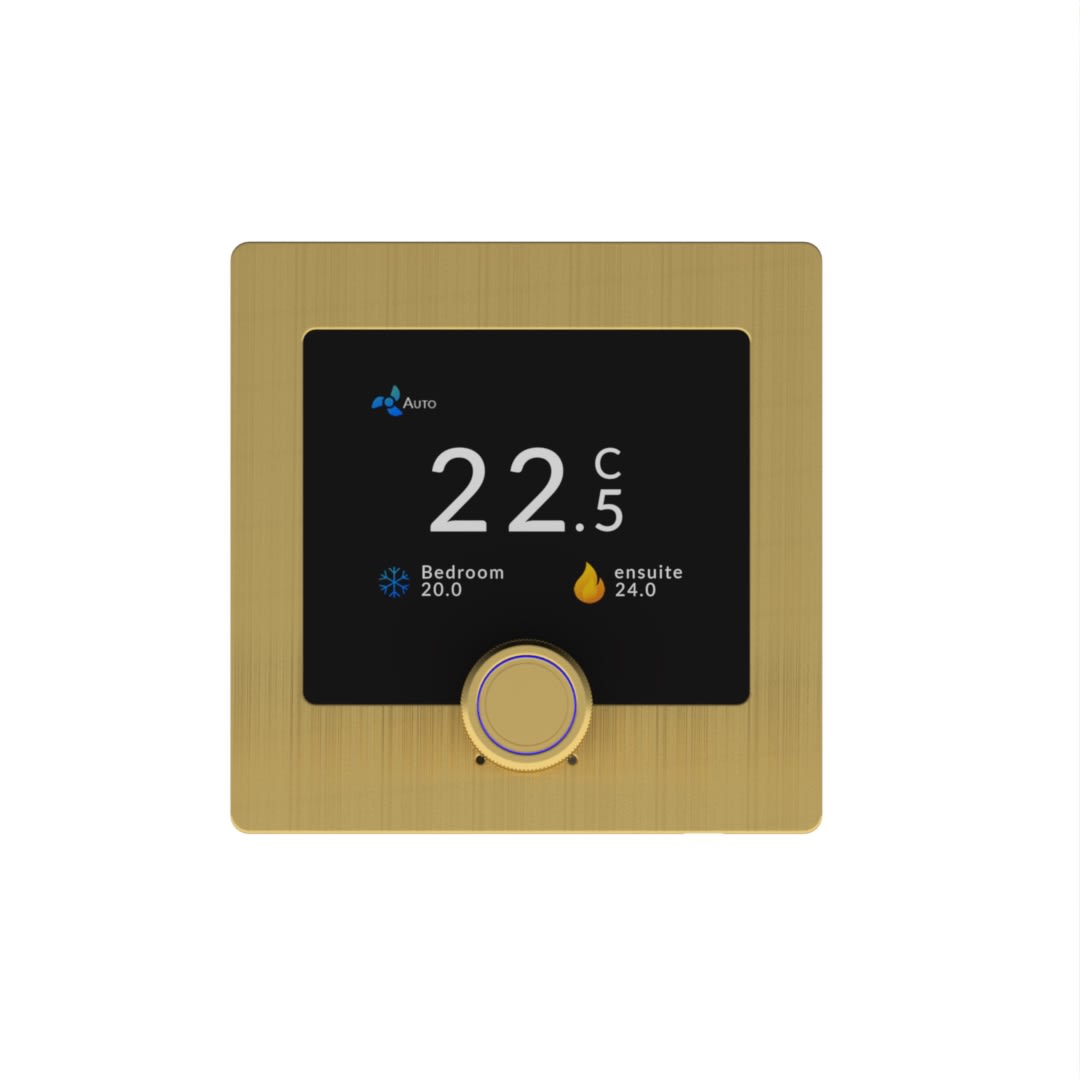

Ursium / Lutron Alisse Single Gang Face Plate Kit including digital crown

Room Temperature Sensor

Centigrade or Fahrenheit

With configurable display resolutions of 0.1, 0.5 & 1.0 °C/°F

Accuracy ±0.5°C ±1°F

Includes Virtual Temperature Support

Dead band support

0 – 8°C (in half degree increments) for heating

0 – 8°C (in half degree increments) for cooling

Total dead band width 16 °C

Floor Temperature

Configurable Maximum Floor Temperature (for zone 1 & 2)

Configurable Minimum Floor Temperature (for zone 1 & 2)

Remote Probes

Zone Support

Two Room (Zone) Models

Zone 1: Internal temperature & Humidity Sensor

3no. 10k3 remote probe inputs

(2 x Wall & 1x Floor)

Zone 2: 2no. 10k3 remote probe inputs

(1 x Wall & 1x Floor)

Zone 2 can be enabled or disabled

Remote probe length: Max 10m / Min 1m

Heating Mode

Heating support can be enabled or disabled (per zone)

Includes Optional Heating Modulation Support

Heat Boost Modes

3 stage heating option

Stage 1: Primary heating source (Wet, Electric or Air)

Stage 2: (boost) Secondary heating (Wet, Electric)

Stage 3: (boost) Third Stage Heating (Warm Air)

Each stage configurable with temperature separation

Cooling Mode

Cooling support can be enabled or disabled (per room)

Direct to Indoor unit via driver support or indirect through Modbus registers

Operation Modes (opMode)

Each zone (room) has an independent opMode (OFF, AUTO, Away, Heating Only, Cooling Only)

AWAY includes a configurable frost protection setback temperature.

Towel Radiator Control

Optional Control over Towel Radiator Demand, via direct override and/or Timer

up to two towel radiator control (1per zone)

Hot Water Control

Optional Control over Hot Water Demand, via direct override or Timer

Eco Modes

Each Zone has independent Eco Mode that control the dead bands of the heating and cooling

There are four ecoModes available for each zone (OFF, Low, Medium & High) each eco mode has configurable threshold levels.

Humidity Support

Between 15% & 85% RH humidity readings

Accuracy ±5% RH

Setpoint Range

Adjustable setpoint between 5 & 36°C in 0.5 & 1.0 °C increments

Allows for installer configurable setpoint limits

Scheduling / Timeclock

Built in RTC

7 x Room Pre-sets / profiles

Zone:1 5/2 day timer with 4/4 timers

Zone:2 5/2 day timer with 4/4 timers

Towel Rail Timer 2 per day

Hot Water Timer 2 per day

Power

IEC SELV/NEC® Class 2

18 – 28 V DC – 80mA (used for power supply & volt drop calculations)

DC Power supplies used must have short circuit and overload protection

Typical Power Consumption

40mA / 1.0 W @ 24v DC

Test conditions: All features enabled, with external probes fitted. Screen in dim mode.

Enclosure

IP20 Rating, indoor use only

Environment

Ambient operating temperature: -5 °C to 40 °C, (23 °F to 113 °F)

0% to 85% non-condensing relative humidity. Indoor use only.

Communications

SELV/PELV/NEC® Class 2 wiring connects thermostats to other devices on the Modbus link.

Mode: RTU Framing (JBUS)

Baud Rate: 9600, 19200, 57600 & 115200

Byte Format: 8N1

Modbus ID: 1 – 32 (range)

Air-Conditioner control

(only on “ACM” Models)

For control of individual Air-Conditioners without a BMS

Secondary Modbus: as above, with MASTER mode @ 9600bps

Contact Polar Bear Design for the latest compatibility

Digital Inputs

ACM” Models

2 x Volt Free Digital inputs

ESD Protection

Meets IEC 801-2. To withstand 15 kV electrostatic discharge without damage or memory loss.

Memory

Internal EEPROM is rated for 100,000 writes (non-volatile configuration only)

Power Failure

Features marked as non-volatile are saved to internal EEPROM memory and will be restored after power is returned.

Mounting

See mounting details later in this document

Wiring

SELV/PELV/NEC® Class 2

Terminals

DC Power Terminal (x2pin) accepts 24AWG to 12 AWG wires

Modbus Terminal (x3pin) accepts 28AWG to 16AWG wires

Remote probes Terminal (x10pin) accepts 28AWG to 16AWG wires

Display

2.4 inch IPS TFT Screen 36.72(W) x 48.96 (H) mm

Touch Screen version optional

(262K) / Transmissive / Normally Black

Life Time 50,000 hrs (@ 25 °C)

Warranty

https://www.polarbeardesign.co.uk/docs/warranty

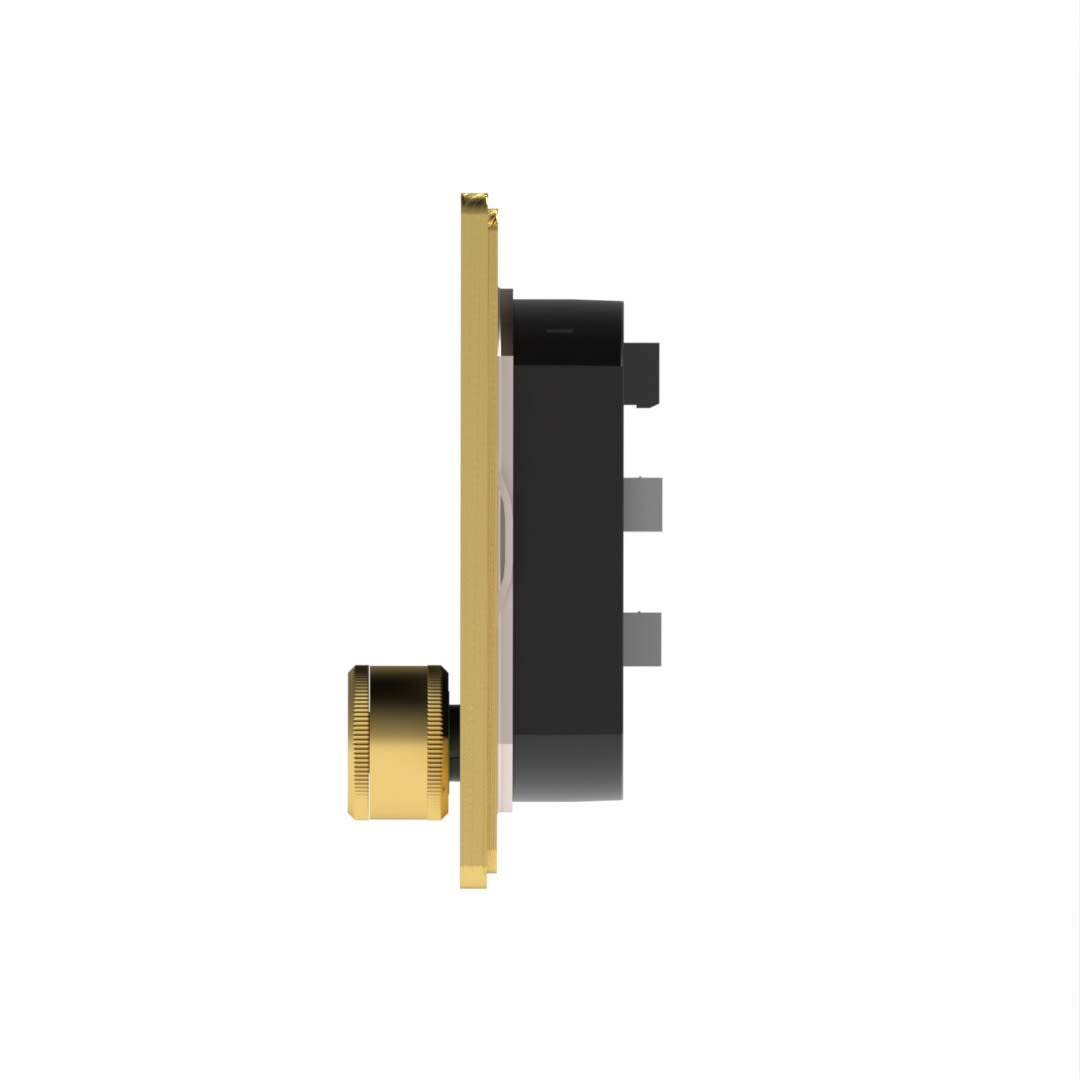

Product Parts

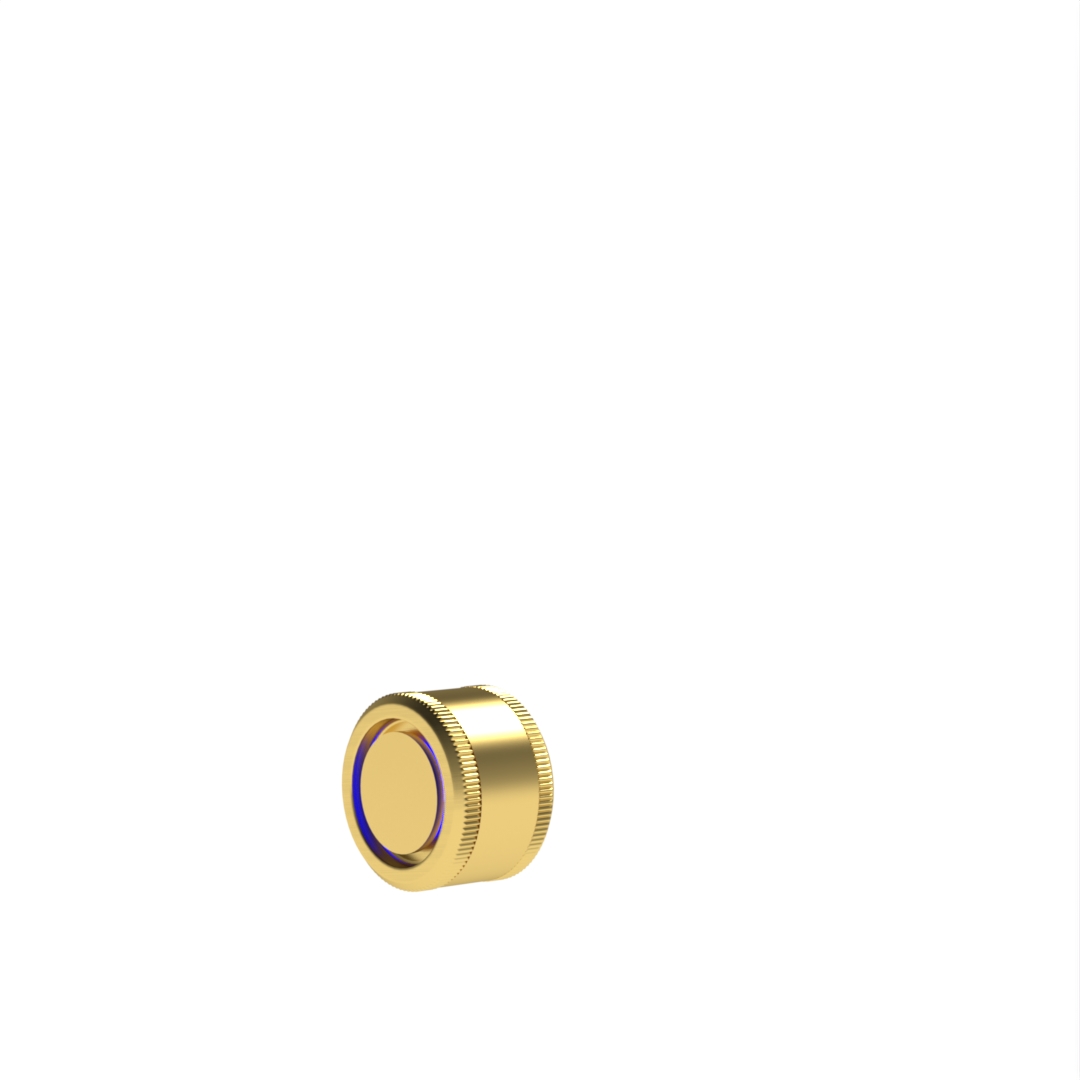

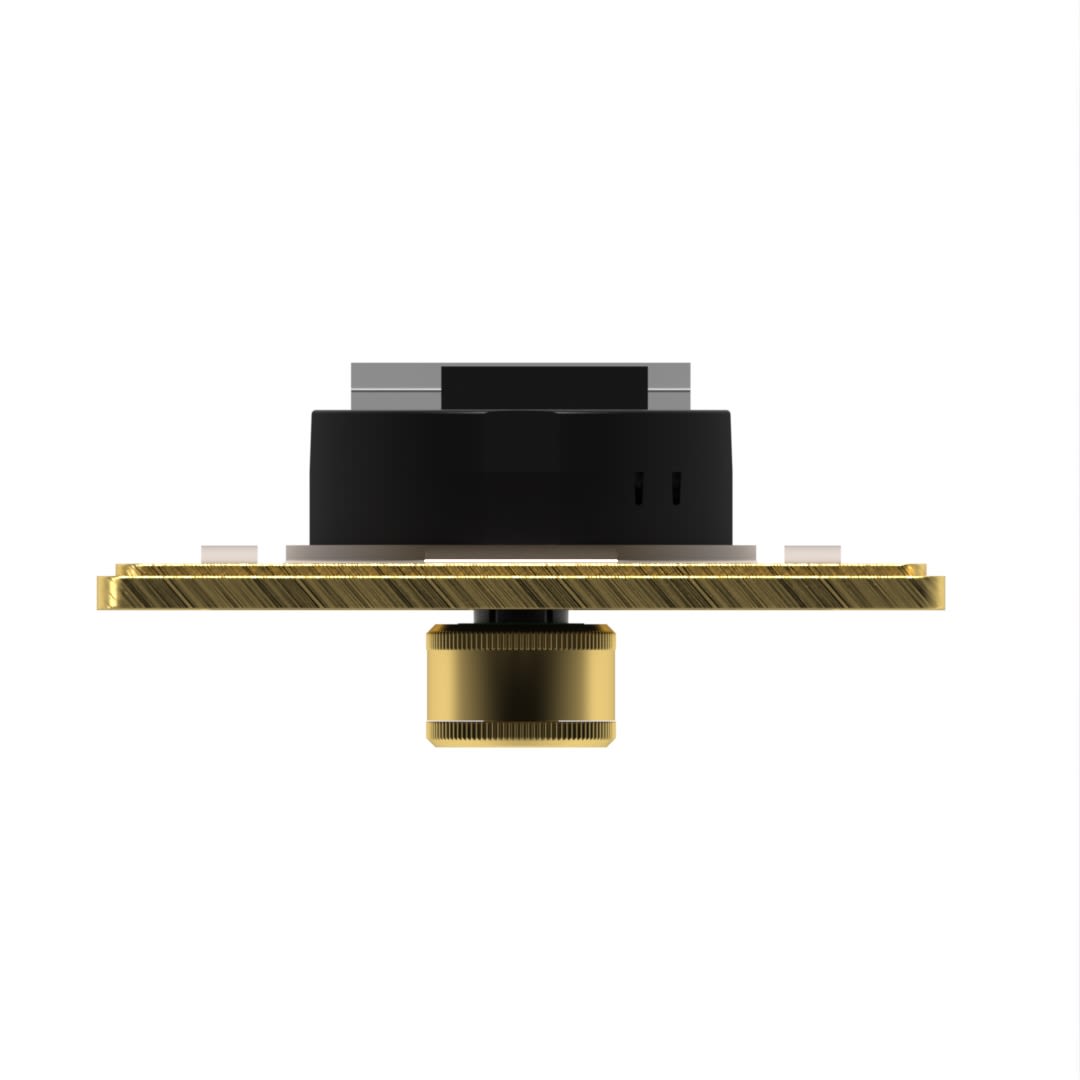

Digital Crown

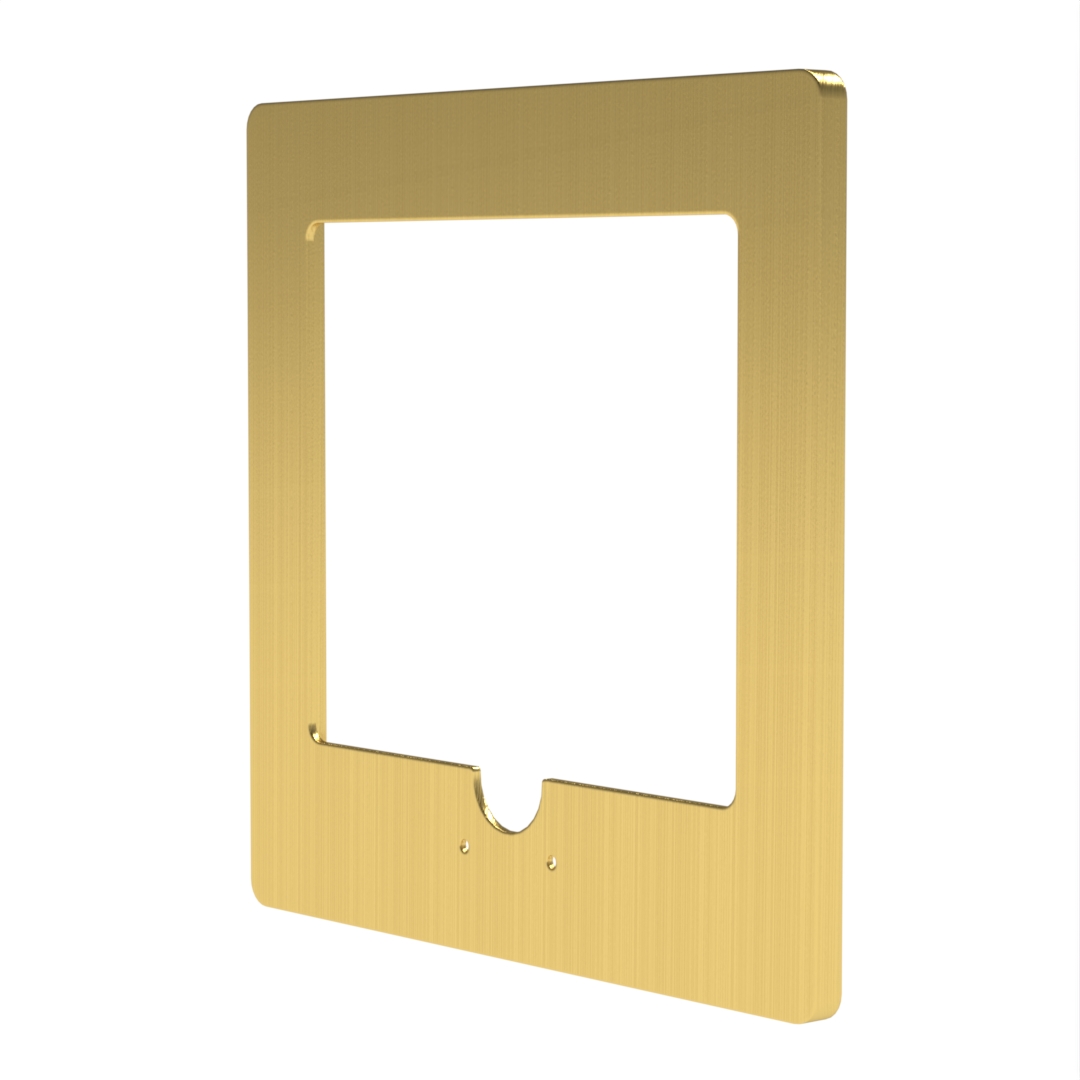

Face plate

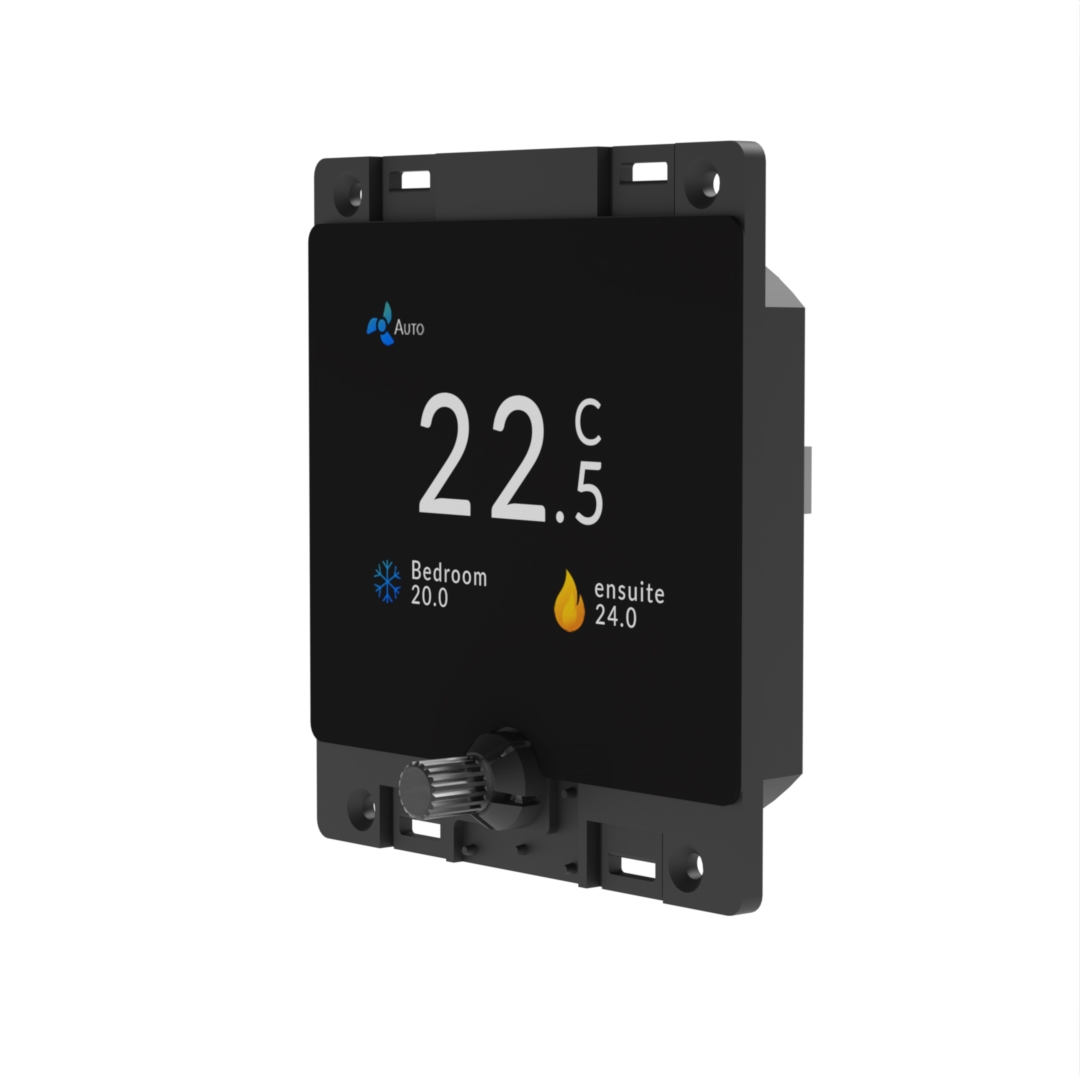

Ursium base unit

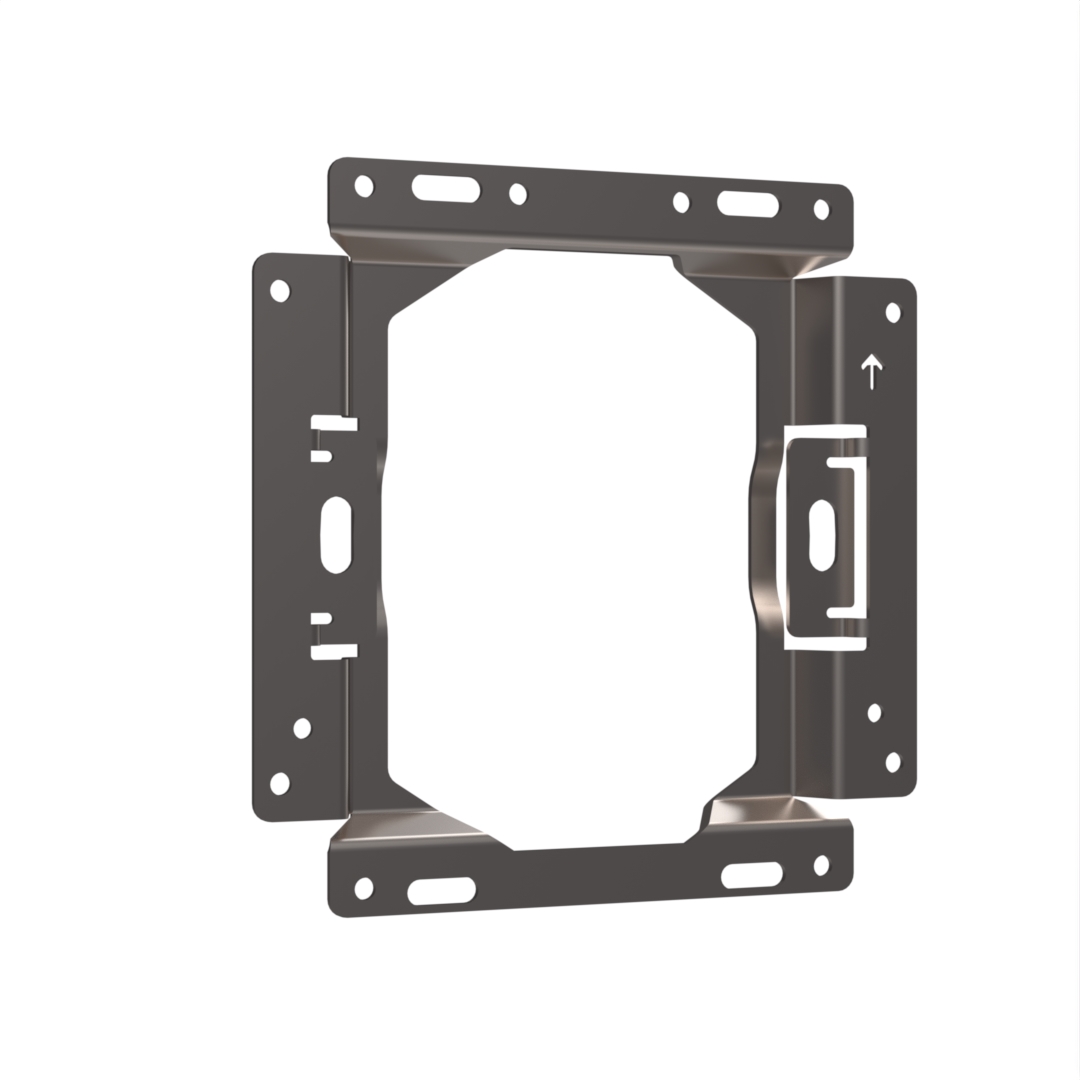

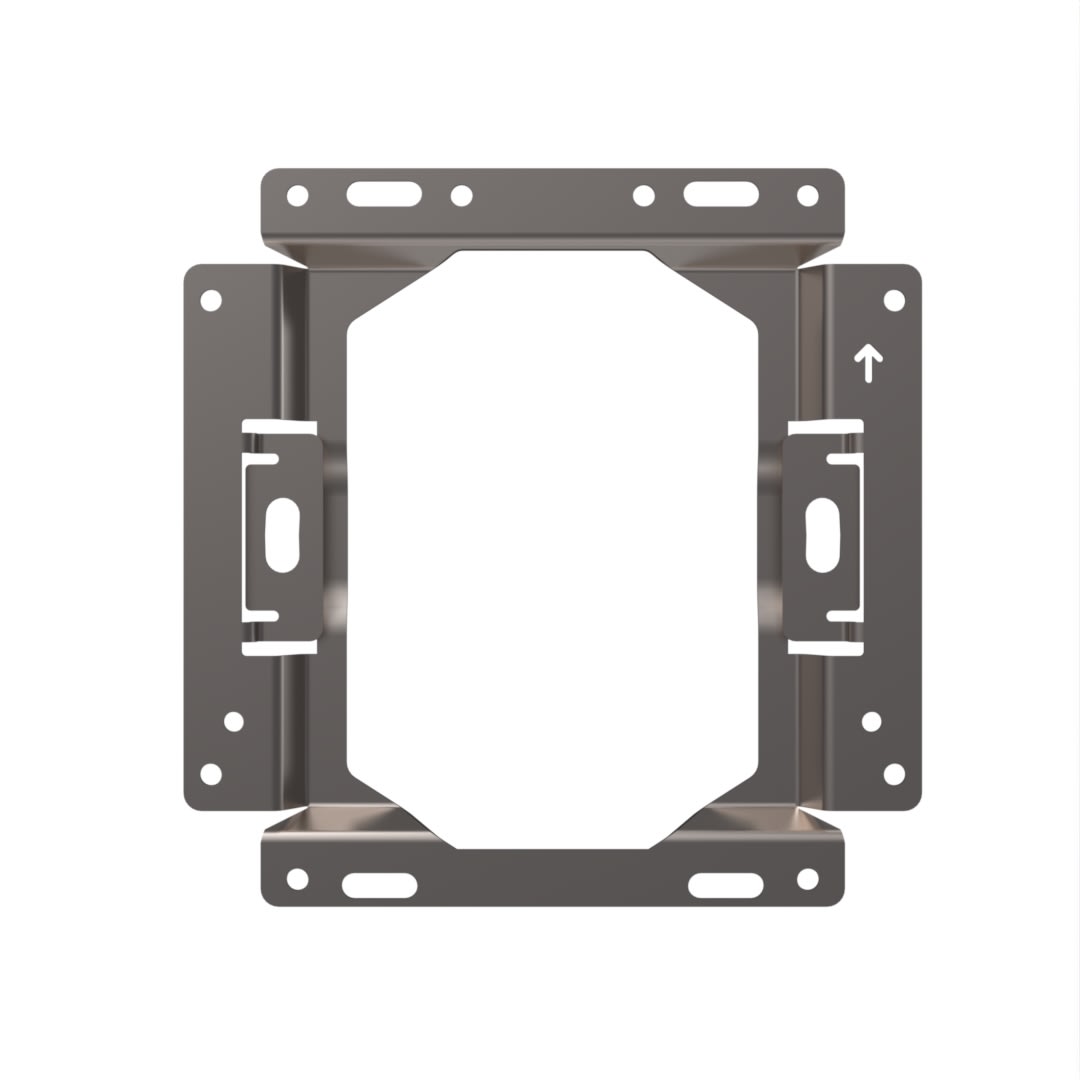

Mounting Frame
