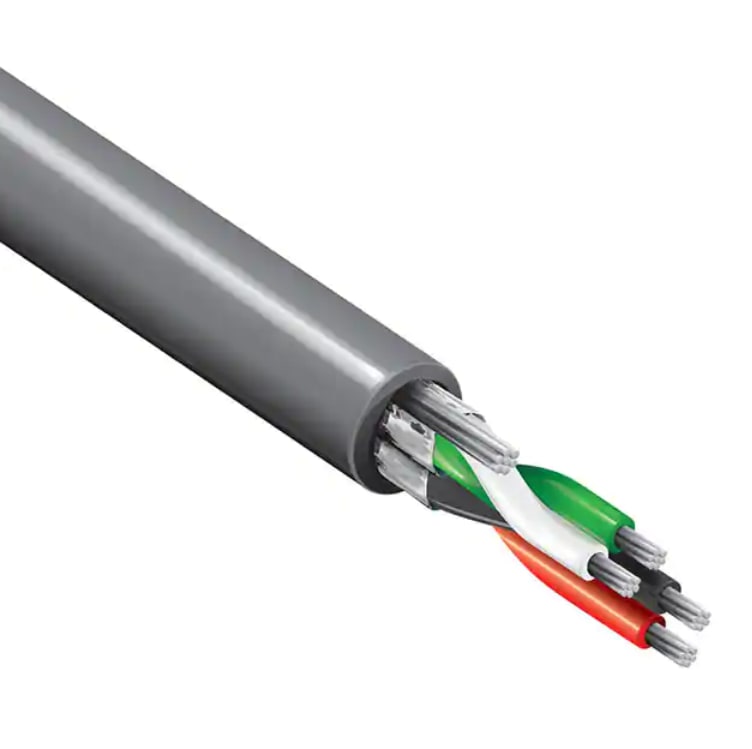

pBus Control Cable
Data MUX cable for wiring Zentium Pro Thermostats and UMC Controllers together for comunications.
Data MUX cable for wiring Zentium Pro Thermostats and UMC Controllers together for communications
Individually screened two pair data cable 22AWG Suitable for instrumentation applications where it is important to provide a high level of screening from external sources, together with low levels of cross talk between pairs
Conductors: |
2 x 2 x 22(7) AWF Individually screened pairs |
8723 LSF 2X2XAWG22 (LSF) |
|
Conductor Stranding: |
Class 2 Stranded tinned copper conductor |
Screen: |
Aluminium Foil Tape |
Drain Wire: |
Stranded tinned copper |
Sheath Colour: |
GREY (RAL 7001) |
Colours: |
Pair 1: Red & Black Pair 2: Green & White |
Sheath: |
LSF (Low Smoke and Fume) |
Temperature Rating: |
-20 to 80 degrees C |
Flame Retardant: |
EN 60332-1-2 |
Insulation: |
PE (Polyethylene) |
Resistance @20 degrees C: |
65.3 ohms/km |
Reel Length : |
100m or 250m |
Standards: |
CPR Classification Eca |
HS Code: |
854449200 |
